This is the base class used for all Equation classes. More...

#include <equation_base.h>

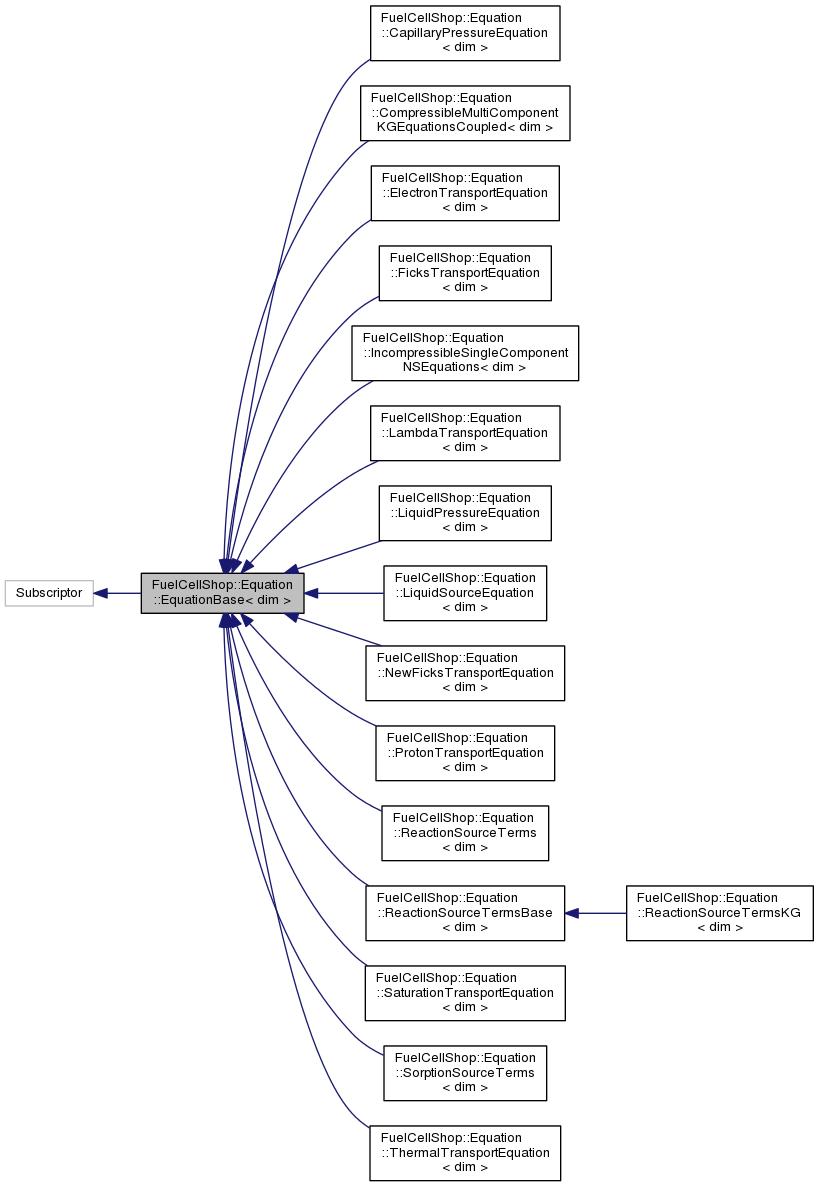

Inheritance diagram for FuelCellShop::Equation::EquationBase< dim >:

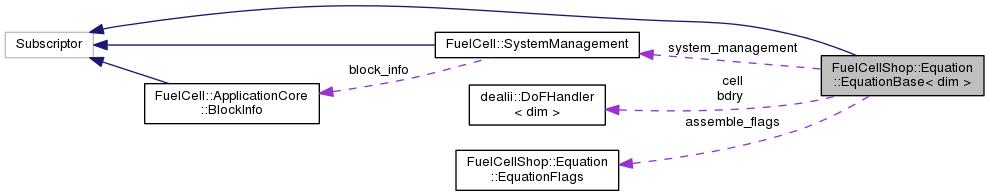

Collaboration diagram for FuelCellShop::Equation::EquationBase< dim >:

Public Member Functions
Local CG FEM based assemblers
virtual void	assemble_cell_matrix (FuelCell::ApplicationCore::MatrixVector &cell_matrices, const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local cell matrix. More...

virtual void	assemble_cell_residual (FuelCell::ApplicationCore::FEVector &cell_residual, const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local cell residual for the RHS. More...

virtual void	assemble_bdry_matrix (FuelCell::ApplicationCore::MatrixVector &bdry_matrices, const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &bdry_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local boundary matrix. More...

virtual void	assemble_bdry_residual (FuelCell::ApplicationCore::FEVector &bdry_residual, const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &bdry_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local boundary residual. More...

Accessors and info
const couplings_map &	get_internal_cell_couplings () const
	This function returns `internal_cell_couplings` of a derived equation class. More...

const couplings_map &	get_internal_flux_couplings () const
	This function returns `internal_flux_couplings` (DG FEM only) of a derived equation class. More...

const component_materialID_value_map &	get_component_materialID_value () const
	This function returns `component_materialID_value` of a derived equation class. More...

const component_boundaryID_value_map &	get_component_boundaryID_value () const
	This function returns `component_boundaryID_value` of a derived equation class. More...

const std::vector< BoundaryType > &	get_boundary_types () const
	This function returns `boundary_types` of a derived equation class. More...

const std::vector< std::vector < BoundaryType > > &	get_multi_boundary_types () const
	This function returns `multi_boundary_types` of a derived equation class. More...

const std::vector< OutputType > &	get_output_types () const
	This function returns `output_types` of a derived equation class. More...

const std::vector< std::vector < OutputType > > &	get_multi_output_types () const
	This function returns `multi_output_types` of a derived equation class. More...

const std::string &	get_equation_name () const
	This function returns `equation_name` of a derived equation class. More...

const std::vector< unsigned int > &	get_matrix_block_indices () const
	This function returns `matrix_block_indices` of a derived equation class. More...

const std::vector< unsigned int > &	get_residual_indices () const
	This function returns `residual_indices` of a derived equation class. More...

virtual void	print_equation_info () const
	This function prints out the equations info of a derived equation class. More...

Public Attributes
bool	variable_initial_data
	`true`, if variable initial data is prescribed on a part of the domain. More...

bool	variable_boundary_data
	`true`, if variable Dirichlet boundary conditions are prescribed on a part of the boundary. More...

Protected Member Functions
Constructors, destructor, and initialization
	EquationBase (FuelCell::SystemManagement &sys_management, boost::shared_ptr< FuelCell::ApplicationCore::ApplicationData > data=boost::shared_ptr< FuelCell::ApplicationCore::ApplicationData >())
	Constructor. More...

virtual	~EquationBase ()
	Destructor. More...

virtual void	declare_parameters (ParameterHandler &param) const
	Declare parameters. More...

virtual void	initialize (ParameterHandler &param)
	Initialize parameters. More...

virtual void	set_parameters (const std::vector< std::string > &name_dvar, const std::vector< double > &value_dvar, ParameterHandler &param)
	Set parameters using the parameter file, in order to run parametric/optimization studies. More...

Local CG FEM based assemblers - make_ functions
virtual void	make_assemblers_generic_constant_data ()
	Function used to initialize variable information that will be needed to assemble matrix and residual and that will remain constant throughout the simulation. More...

virtual void	make_assemblers_cell_constant_data (const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info)
	Function used to initialize cell speciific information that remains constant regardless of the cell being computed. More...

virtual void	make_assemblers_bdry_constant_data (const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &bdry_info)

virtual void	make_assemblers_cell_variable_data (const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Function used to compute cell specific information such as shape functions, shape function gradients, solution at each quadrature point. More...

virtual void	make_assemblers_bdry_variable_data (const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &bdry_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)

void	select_cell_assemblers (const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	This routine is used to select the make_assembly routines that need to be called inside assemble_cell_matrix to compute. More...

Other - make_ functions
virtual void	make_internal_cell_couplings ()
	This function fills out `internal_cell_couplings` of a derived equation class. More...

virtual void	make_internal_flux_couplings ()
	This function fills out `internal_flux_couplings` (DG FEM only) of a derived equation class. More...

virtual void	make_component_materialID_value ()
	This function fills out `component_materialID_value` of a derived equation class. More...

virtual void	make_component_boundaryID_value ()
	This function fills out `component_boundaryID_value` of a derived equation class. More...

virtual void	make_boundary_types ()
	This function fills out `boundary_types` of a derived equation class. More...

virtual void	make_multi_boundary_types ()
	This function fills out `multi_boundary_types` of a derived equation class. More...

virtual void	make_output_types ()
	This function fills out `output_types` of a derived equation class. More...

virtual void	make_multi_output_types ()
	This function fills out `multi_output_types` of a derived equation class. More...

virtual void	make_matrix_block_indices ()
	This function is only needed to provide the last argument to dealII_to_appframe. More...

virtual void	make_residual_indices ()
	This function is only needed to provide the last argument to dealII_to_appframe. More...

FEM assemblers
virtual void	assemble_cell_Jacobian_matrix (FuelCell::ApplicationCore::MatrixVector &cell_matrices, const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble the local Jacobian Matrix for Non-Linear problems. More...

virtual void	assemble_bdry_Jacobian_matrix (FuelCell::ApplicationCore::MatrixVector &bdry_matrices, const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &bdry_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local Jacobian boundary matrix for Non-Linear problems. More...

virtual void	assemble_cell_linear_matrix (FuelCell::ApplicationCore::MatrixVector &cell_matrices, const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble the local cell matrix for Linear problems. More...

virtual void	assemble_cell_residual_rhs (FuelCell::ApplicationCore::FEVector &cell_residual, const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local cell RHS for nonlinear problems. More...

virtual void	assemble_cell_linear_rhs (FuelCell::ApplicationCore::FEVector &cell_residual, const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &cell_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local cell RHS for Linear problems. More...

virtual void	assemble_bdry_linear_matrix (FuelCell::ApplicationCore::MatrixVector &bdry_matrices, const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &bdry_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local boundary matrix for linear problems. More...

virtual void	assemble_bdry_linear_rhs (FuelCell::ApplicationCore::FEVector &bdry_residual, const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &bdry_info, FuelCellShop::Layer::BaseLayer< dim > *const layer)
	Assemble local boundary RHS for linear problems. More...

Converters
void	standard_to_block_wise (FullMatrix< double > &target) const
	This function changes the order of dealii::FullMatrix<double> `target` from standard to block-wise. More...

void	standard_to_block_wise (Vector< double > &target) const
	This function changes the order of dealii::Vector<double> `target` from standard to block-wise. More...

void	dealII_to_appframe (FuelCell::ApplicationCore::MatrixVector &dst, const FullMatrix< double > &src, const std::vector< unsigned int > &matrix_block_indices) const
	This function converts the standard ordered structure dealii::FullMatrix<double> `src` into the block-wise ordered structure FuelCell::ApplicationCore::MatrixVector `dst`. More...

void	dealII_to_appframe (FuelCell::ApplicationCore::FEVector &dst, const Vector< double > &src, const std::vector< unsigned int > &residual_indices) const
	This function converts the standard ordered structure dealii::Vector<double> `src` into the block-wise ordered structure FuelCell::ApplicationCore::FEVector `dst`. More...

Other functions
bool	belongs_to_boundary (const unsigned int &tria_boundary_id, const unsigned int &param_boundary_id) const
	This function returns `true` if a boundary indicator of an external face on the triangulation coincides with a boundary indicator defined in the parameters file of a derived equation class. More...

Minor functions
void	print_caller_name (const std::string &caller_name) const
	This function is used to print out the name of another function that has been declared in the scope of this class, but not yet been implemented. More...

Protected Attributes
Local CG FEM based assemblers - constant data (generic)
unsigned int	dofs_per_cell
	Number of degrees of freedom per cell. More...

Local CG FEM based assemblers - constant data (cell)
unsigned int	n_q_points_cell
	Number of quadrature points per cell. More...

Local CG FEM based assemblers - constant data (boundary)
unsigned int	n_q_points_bdry
	Number of quadrature points per boundary. More...

Local CG FEM based assemblers - variable data (active mesh iterators)
DoFHandler< dim > ::active_cell_iterator	cell
	Currently active DoFHandler<dim> active cell iterator. More...

DoFHandler< dim > ::active_face_iterator	bdry
	Currently active DoFHandler<dim> active boundary iterator. More...

Local CG FEM based assemblers - variable data (other - cell)
Implementation is in the derived equation classes.
std::vector< double >	JxW_cell
	Jacobian of mapping by Weight in the quadrature points of a cell. More...

Local CG FEM based assemblers - variable data (other - boundary)
Implementation is in the derived equation classes.
std::vector< double >	JxW_bdry
	Jacobian of mapping by Weight in the quadrature points of a boundary. More...

std::vector< Point< dim > >	normal_vectors
	Normal vectors in the quadrature points of a boundary. More...

std::vector< std::vector < Point< dim > > >	tangential_vectors
	Tangential vectors in the quadrature points of a boundary. More...

Generic Data
FuelCell::SystemManagement *	system_management
	Pointer to the external YourApplication<dim>::system_management object. More...

couplings_map	internal_cell_couplings
	This object contains the info on how the equations and solution variables of a derived equation class are coupled. More...

couplings_map	internal_flux_couplings
	This object contains the info on how the "X" and "Y" of a derived equation class are coupled (DG FEM only). More...

component_materialID_value_map	component_materialID_value
	This object reflects the following structure (see FuelCell::InitialAndBoundaryData namespace docs): More...

component_boundaryID_value_map	component_boundaryID_value
	This object reflects the following structure (see FuelCell::InitialAndBoundaryData namespace docs): More...

std::vector< BoundaryType >	boundary_types
	The list of boundary types of a derived equation class. More...

std::vector< std::vector < BoundaryType > >	multi_boundary_types
	The list of multiple boundary types of a derived equation class. More...

std::vector< OutputType >	output_types
	The list of output types of a derived equation class. More...

std::vector< std::vector < OutputType > >	multi_output_types
	The list of multiple output types of a derived equation class. More...

std::string	equation_name
	The name of a derived equation class. More...

std::string	name_base_variable
	Const std::string member storing name of the base solution variable corresponding to the equation represented by this class. More...

std::vector< unsigned int >	matrix_block_indices
	The system matrix block indices (a derived equation class) drawn from the global structure (a derived equation class + other active equation classes included into the computation). More...

std::vector< unsigned int >	residual_indices
	The residual indices (a derived equation class) drawn from the global structure (a derived equation class + other active equation classes included into the computation). More...

std::vector< bool >	counter
	This vector contains the collection of internal "counters" used by the derived equation classes. More...

EquationFlags	assemble_flags
	This vector contains a collection of internal flags to tell derived equation classes what needs to be re-computed. More...

boost::shared_ptr < FuelCell::ApplicationCore::ApplicationData >	data
	Data object for the application data to be passed to the equation classes. More...

std::string	solution_vector_name
	The name of the solution vector in FEVectors. More...

std::string	residual_vector_name
	The name of the residual vector name in FEVectors. More...

Detailed Description

template<int dim>
class FuelCellShop::Equation::EquationBase< dim >

This is the base class used for all Equation classes.

Equation classes are those that implement the weak for of a given governing equation such as Fick's law, Ohm's law or a source term.

This class is used to lock the interface of all derived equation classes under the FuelCellShop::Equation namespace.

This class also contains generic data and methods heavily used by all derived equation classes. The functionality of this class can be extended if needed.

Author: Valentin N. Zingan, 2012; Marc Secanell, 2012-16; Mayank Sabharwal, 2015; Aslan Kosakian, 2015

Constructor & Destructor Documentation

template<int dim>

FuelCellShop::Equation::EquationBase< dim >::EquationBase	(	FuelCell::SystemManagement &	sys_management,
		boost::shared_ptr< FuelCell::ApplicationCore::ApplicationData >	data = `boost::shared_ptr< FuelCell::ApplicationCore::ApplicationData >()`
	)

protected

Constructor.

Warning

The constructor of the child classes needs to define the following to variables:

name_base_variable
equation_name for example, for lambda_transport_equation
* this->equation_name = "Membrane Water Content Transport Equation";

* this->name_base_variable = "membrane_water_content";

*

These two variables are used to define the section where the information is stored in the parameter file for the equations.

template<int dim>

virtual FuelCellShop::Equation::EquationBase< dim >::~EquationBase ( )

protectedvirtual

Destructor.

Member Function Documentation

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_bdry_Jacobian_matrix	(	FuelCell::ApplicationCore::MatrixVector &	bdry_matrices,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &	bdry_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Assemble local Jacobian boundary matrix for Non-Linear problems.

Note: This member function is called by assemble_cell_matrix depending on the type of problem

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_bdry_linear_matrix	(	FuelCell::ApplicationCore::MatrixVector &	bdry_matrices,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &	bdry_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Assemble local boundary matrix for linear problems.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_bdry_linear_rhs	(	FuelCell::ApplicationCore::FEVector &	bdry_residual,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &	bdry_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Assemble local boundary RHS for linear problems.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_bdry_matrix	(	FuelCell::ApplicationCore::MatrixVector &	bdry_matrices,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &	bdry_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlinevirtual

Assemble local boundary matrix.

This class selects the appropriate private functions to use depending on the problem at hand, e.g., linear vs. nonlinear. This parameters are set in :

 subsection Simulator
   set nonlinear solver name
 end
*

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_bdry_residual	(	FuelCell::ApplicationCore::FEVector &	bdry_residual,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &	bdry_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlinevirtual

Assemble local boundary residual.

This class selects the appropriate private functions to use depending on the problem at hand, e.g., linear vs. nonlinear. This parameters are set in :

 subsection Simulator
   set nonlinear solver name
 end
*

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_cell_Jacobian_matrix	(	FuelCell::ApplicationCore::MatrixVector &	cell_matrices,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &	cell_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Assemble the local Jacobian Matrix for Non-Linear problems.

Note: This member function is called by assemble_cell_matrix depending on the type of problem

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_cell_linear_matrix	(	FuelCell::ApplicationCore::MatrixVector &	cell_matrices,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &	cell_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Assemble the local cell matrix for Linear problems.

Note: This member function is called by assemble_cell_matrix depending on the type of problem

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_cell_linear_rhs	(	FuelCell::ApplicationCore::FEVector &	cell_residual,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &	cell_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Assemble local cell RHS for Linear problems.

Note: This member function is called by assemble_cell_residual depending on the type of problem

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_cell_matrix	(	FuelCell::ApplicationCore::MatrixVector &	cell_matrices,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &	cell_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

virtual

Assemble local cell matrix.

This class selects the appropriate private functions to use depending on the problem at hand, e.g., linear vs. nonlinear. This parameters are set in :

 subsection Simulator
   set nonlinear solver name
 end
*

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_cell_residual	(	FuelCell::ApplicationCore::FEVector &	cell_residual,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &	cell_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

virtual

Assemble local cell residual for the RHS.

This class selects the appropriate private functions to use depending on the problem at hand, e.g., linear vs. nonlinear. This parameters are set in :

 subsection Simulator
   set nonlinear solver name
 end
*

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::assemble_cell_residual_rhs	(	FuelCell::ApplicationCore::FEVector &	cell_residual,
		const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &	cell_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Assemble local cell RHS for nonlinear problems.

Note: This member function is called by assemble_cell_residual depending on the type of problem

template<int dim>

bool FuelCellShop::Equation::EquationBase< dim >::belongs_to_boundary	(	const unsigned int &	tria_boundary_id,
		const unsigned int &	param_boundary_id
	)		const

inlineprotected

This function returns true if a boundary indicator of an external face on the triangulation coincides with a boundary indicator defined in the parameters file of a derived equation class.

template<int dim>

void FuelCellShop::Equation::EquationBase< dim >::dealII_to_appframe	(	FuelCell::ApplicationCore::MatrixVector &	dst,
		const FullMatrix< double > &	src,
		const std::vector< unsigned int > &	matrix_block_indices
	)		const

protected

This function converts the standard ordered structure dealii::FullMatrix<double> src into the block-wise ordered structure FuelCell::ApplicationCore::MatrixVector dst.

matrix_block_indices is the system matrix block indices (a derived equation class) drawn from the global structure (a derived equation class + other active equation classes included into the computation).

template<int dim>

void FuelCellShop::Equation::EquationBase< dim >::dealII_to_appframe	(	FuelCell::ApplicationCore::FEVector &	dst,
		const Vector< double > &	src,
		const std::vector< unsigned int > &	residual_indices
	)		const

protected

This function converts the standard ordered structure dealii::Vector<double> src into the block-wise ordered structure FuelCell::ApplicationCore::FEVector dst.

residual_indices is the residual indices (a derived equation class) drawn from the global structure (a derived equation class + other active equation classes included into the computation).

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::declare_parameters ( ParameterHandler & param ) const

protectedvirtual

Declare parameters.

template<int dim>

const std::vector< BoundaryType >& FuelCellShop::Equation::EquationBase< dim >::get_boundary_types ( ) const

inline

This function returns boundary_types of a derived equation class.

template<int dim>

const component_boundaryID_value_map& FuelCellShop::Equation::EquationBase< dim >::get_component_boundaryID_value ( ) const

inline

This function returns component_boundaryID_value of a derived equation class.

template<int dim>

const component_materialID_value_map& FuelCellShop::Equation::EquationBase< dim >::get_component_materialID_value ( ) const

inline

This function returns component_materialID_value of a derived equation class.

template<int dim>

const std::string& FuelCellShop::Equation::EquationBase< dim >::get_equation_name ( ) const

inline

This function returns equation_name of a derived equation class.

template<int dim>

const couplings_map& FuelCellShop::Equation::EquationBase< dim >::get_internal_cell_couplings ( ) const

inline

This function returns internal_cell_couplings of a derived equation class.

template<int dim>

const couplings_map& FuelCellShop::Equation::EquationBase< dim >::get_internal_flux_couplings ( ) const

inline

This function returns internal_flux_couplings (DG FEM only) of a derived equation class.

template<int dim>

const std::vector<unsigned int>& FuelCellShop::Equation::EquationBase< dim >::get_matrix_block_indices ( ) const

inline

This function returns matrix_block_indices of a derived equation class.

template<int dim>

const std::vector< std::vector< BoundaryType > >& FuelCellShop::Equation::EquationBase< dim >::get_multi_boundary_types ( ) const

inline

This function returns multi_boundary_types of a derived equation class.

template<int dim>

const std::vector< std::vector< OutputType > >& FuelCellShop::Equation::EquationBase< dim >::get_multi_output_types ( ) const

inline

This function returns multi_output_types of a derived equation class.

template<int dim>

const std::vector< OutputType >& FuelCellShop::Equation::EquationBase< dim >::get_output_types ( ) const

inline

This function returns output_types of a derived equation class.

template<int dim>

const std::vector<unsigned int>& FuelCellShop::Equation::EquationBase< dim >::get_residual_indices ( ) const

inline

This function returns residual_indices of a derived equation class.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::initialize ( ParameterHandler & param )

protectedvirtual

Initialize parameters.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_assemblers_bdry_constant_data ( const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo & bdry_info )

inlineprotectedvirtual

Note: This function is overloaded in the derived equation classes.

Reimplemented in FuelCellShop::Equation::CompressibleMultiComponentKGEquationsCoupled< dim >, FuelCellShop::Equation::ThermalTransportEquation< dim >, FuelCellShop::Equation::NewFicksTransportEquation< dim >, FuelCellShop::Equation::ProtonTransportEquation< dim >, FuelCellShop::Equation::ElectronTransportEquation< dim >, FuelCellShop::Equation::LiquidPressureEquation< dim >, FuelCellShop::Equation::LambdaTransportEquation< dim >, FuelCellShop::Equation::SaturationTransportEquation< dim >, and FuelCellShop::Equation::CapillaryPressureEquation< dim >.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_assemblers_bdry_variable_data	(	const typename FuelCell::ApplicationCore::DoFApplication< dim >::FaceInfo &	bdry_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Note: This function is overloaded in the derived equation classes.

Reimplemented in FuelCellShop::Equation::CompressibleMultiComponentKGEquationsCoupled< dim >, FuelCellShop::Equation::ThermalTransportEquation< dim >, FuelCellShop::Equation::NewFicksTransportEquation< dim >, FuelCellShop::Equation::ProtonTransportEquation< dim >, FuelCellShop::Equation::ElectronTransportEquation< dim >, FuelCellShop::Equation::LiquidPressureEquation< dim >, FuelCellShop::Equation::LambdaTransportEquation< dim >, FuelCellShop::Equation::SaturationTransportEquation< dim >, and FuelCellShop::Equation::CapillaryPressureEquation< dim >.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_assemblers_cell_constant_data ( const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo & cell_info )

inlineprotectedvirtual

Function used to initialize cell speciific information that remains constant regardless of the cell being computed.

It is usually used to allocate memory for shape functions, shape function gradients, and JxW_cell in initialized in make_assemblers_cell_variable_data>.

Note: This function is called only once throughout the whole simulation. The first time a local matrix is computed.; This function is overloaded in the derived equation classes.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_assemblers_cell_variable_data	(	const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &	cell_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotectedvirtual

Function used to compute cell specific information such as shape functions, shape function gradients, solution at each quadrature point.

Note: This function is called for every cell when the local matrix is computed.; This function is overloaded in the derived equation classes.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_assemblers_generic_constant_data ( )

inlineprotectedvirtual

Function used to initialize variable information that will be needed to assemble matrix and residual and that will remain constant throughout the simulation.

The data should not depend on the cell. If it does, then initialize this informatin using make_assemblers_cell_constant_data. Usually VariableInfo objects for all variables used in the class are initialized here. It assigns solution_index and fe_type.

Note: This function is called the first time the residual/matrix is computed. Note it cannot be called in initialize() since the FiniteElement objects have not yet been created.; This function is usually re-implemented in the derived equation classes based on the necessary solution variables.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_boundary_types ( )

inlineprotectedvirtual

This function fills out boundary_types of a derived equation class.

Reimplemented in FuelCellShop::Equation::NewFicksTransportEquation< dim >, FuelCellShop::Equation::ProtonTransportEquation< dim >, FuelCellShop::Equation::LiquidPressureEquation< dim >, FuelCellShop::Equation::LambdaTransportEquation< dim >, FuelCellShop::Equation::SaturationTransportEquation< dim >, FuelCellShop::Equation::LiquidSourceEquation< dim >, and FuelCellShop::Equation::CapillaryPressureEquation< dim >.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_component_boundaryID_value ( )

inlineprotectedvirtual

This function fills out component_boundaryID_value of a derived equation class.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_component_materialID_value ( )

inlineprotectedvirtual

This function fills out component_materialID_value of a derived equation class.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_internal_cell_couplings ( )

inlineprotectedvirtual

This function fills out internal_cell_couplings of a derived equation class.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_internal_flux_couplings ( )

inlineprotectedvirtual

This function fills out internal_flux_couplings (DG FEM only) of a derived equation class.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_matrix_block_indices ( )

inlineprotectedvirtual

This function is only needed to provide the last argument to dealII_to_appframe.

It only need to be called once during initialization.

This function fills out matrix_block_indices of a derived equation class.

Reimplemented in FuelCellShop::Equation::CompressibleMultiComponentKGEquationsCoupled< dim >, FuelCellShop::Equation::IncompressibleSingleComponentNSEquations< dim >, and FuelCellShop::Equation::ReactionSourceTermsKG< dim >.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_multi_boundary_types ( )

inlineprotectedvirtual

This function fills out multi_boundary_types of a derived equation class.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_multi_output_types ( )

inlineprotectedvirtual

This function fills out multi_output_types of a derived equation class.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_output_types ( )

inlineprotectedvirtual

This function fills out output_types of a derived equation class.

Reimplemented in FuelCellShop::Equation::ProtonTransportEquation< dim >, FuelCellShop::Equation::LiquidPressureEquation< dim >, FuelCellShop::Equation::LambdaTransportEquation< dim >, FuelCellShop::Equation::SaturationTransportEquation< dim >, FuelCellShop::Equation::LiquidSourceEquation< dim >, and FuelCellShop::Equation::CapillaryPressureEquation< dim >.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::make_residual_indices ( )

inlineprotectedvirtual

This function is only needed to provide the last argument to dealII_to_appframe.

It only need to be called once during initialization.

This function fills out residual_indices of a derived equation class.

Reimplemented in FuelCellShop::Equation::CompressibleMultiComponentKGEquationsCoupled< dim >, FuelCellShop::Equation::IncompressibleSingleComponentNSEquations< dim >, and FuelCellShop::Equation::ReactionSourceTermsKG< dim >.

template<int dim>

void FuelCellShop::Equation::EquationBase< dim >::print_caller_name ( const std::string & caller_name ) const

protected

This function is used to print out the name of another function that has been declared in the scope of this class, but not yet been implemented.

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::print_equation_info ( ) const

inlinevirtual

This function prints out the equations info of a derived equation class.

template<int dim>

void FuelCellShop::Equation::EquationBase< dim >::select_cell_assemblers	(	const typename FuelCell::ApplicationCore::DoFApplication< dim >::CellInfo &	cell_info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer
	)

inlineprotected

This routine is used to select the make_assembly routines that need to be called inside assemble_cell_matrix to compute.

generic
constant_cell_data
variable_cell_data and resets the flags as appropriate

template<int dim>

virtual void FuelCellShop::Equation::EquationBase< dim >::set_parameters	(	const std::vector< std::string > &	name_dvar,
		const std::vector< double > &	value_dvar,
		ParameterHandler &	param
	)

inlineprotectedvirtual

Set parameters using the parameter file, in order to run parametric/optimization studies.

Reimplemented in FuelCellShop::Equation::ElectronTransportEquation< dim >.

template<int dim>

void FuelCellShop::Equation::EquationBase< dim >::standard_to_block_wise ( FullMatrix< double > & target ) const

protected

This function changes the order of dealii::FullMatrix<double> target from standard to block-wise.

template<int dim>

void FuelCellShop::Equation::EquationBase< dim >::standard_to_block_wise ( Vector< double > & target ) const

protected

This function changes the order of dealii::Vector<double> target from standard to block-wise.

Member Data Documentation

template<int dim>

EquationFlags FuelCellShop::Equation::EquationBase< dim >::assemble_flags

protected

This vector contains a collection of internal flags to tell derived equation classes what needs to be re-computed.

EquationFlags can be easily extended.

Note: replaces counter

template<int dim>

DoFHandler<dim>::active_face_iterator FuelCellShop::Equation::EquationBase< dim >::bdry

protected

Currently active DoFHandler<dim> active boundary iterator.

template<int dim>

std::vector< BoundaryType > FuelCellShop::Equation::EquationBase< dim >::boundary_types

protected

The list of boundary types of a derived equation class.

template<int dim>

DoFHandler<dim>::active_cell_iterator FuelCellShop::Equation::EquationBase< dim >::cell

protected

Currently active DoFHandler<dim> active cell iterator.

template<int dim>

component_boundaryID_value_map FuelCellShop::Equation::EquationBase< dim >::component_boundaryID_value

protected

This object reflects the following structure (see FuelCell::InitialAndBoundaryData namespace docs):

first argument : name of the solution component,
second argument : boundary id,
third argument : value of the solution component.

template<int dim>

component_materialID_value_map FuelCellShop::Equation::EquationBase< dim >::component_materialID_value

protected

This object reflects the following structure (see FuelCell::InitialAndBoundaryData namespace docs):

first argument : name of the solution component,
second argument : material id,
third argument : value of the solution component.

template<int dim>

std::vector<bool> FuelCellShop::Equation::EquationBase< dim >::counter

protected

This vector contains the collection of internal "counters" used by the derived equation classes.

Deprecated:: use assemble_flags instead

template<int dim>

boost::shared_ptr< FuelCell::ApplicationCore::ApplicationData > FuelCellShop::Equation::EquationBase< dim >::data

protected

Data object for the application data to be passed to the equation classes.

template<int dim>

unsigned int FuelCellShop::Equation::EquationBase< dim >::dofs_per_cell

protected

Number of degrees of freedom per cell.

template<int dim>

std::string FuelCellShop::Equation::EquationBase< dim >::equation_name

protected

The name of a derived equation class.

Referenced by FuelCellShop::Equation::NewFicksTransportEquation< dim >::set_solute_and_solvent(), and FuelCellShop::Equation::FicksTransportEquation< dim >::set_solute_and_solvent().

template<int dim>

couplings_map FuelCellShop::Equation::EquationBase< dim >::internal_cell_couplings

protected

This object contains the info on how the equations and solution variables of a derived equation class are coupled.

template<int dim>

couplings_map FuelCellShop::Equation::EquationBase< dim >::internal_flux_couplings

protected

This object contains the info on how the "X" and "Y" of a derived equation class are coupled (DG FEM only).

template<int dim>

std::vector<double> FuelCellShop::Equation::EquationBase< dim >::JxW_bdry

protected

Jacobian of mapping by Weight in the quadrature points of a boundary.

template<int dim>

std::vector<double> FuelCellShop::Equation::EquationBase< dim >::JxW_cell

protected

Jacobian of mapping by Weight in the quadrature points of a cell.

template<int dim>

std::vector<unsigned int> FuelCellShop::Equation::EquationBase< dim >::matrix_block_indices

protected

The system matrix block indices (a derived equation class) drawn from the global structure (a derived equation class + other active equation classes included into the computation).

template<int dim>

std::vector< std::vector< BoundaryType > > FuelCellShop::Equation::EquationBase< dim >::multi_boundary_types

protected

The list of multiple boundary types of a derived equation class.

template<int dim>

std::vector< std::vector< OutputType > > FuelCellShop::Equation::EquationBase< dim >::multi_output_types

protected

The list of multiple output types of a derived equation class.

template<int dim>

unsigned int FuelCellShop::Equation::EquationBase< dim >::n_q_points_bdry

protected

Number of quadrature points per boundary.

template<int dim>

unsigned int FuelCellShop::Equation::EquationBase< dim >::n_q_points_cell

protected

Number of quadrature points per cell.

Referenced by FuelCellShop::Equation::CompressibleMultiComponentKGEquationsCoupled< dim >::update_inv_diffusion_coefficients().

template<int dim>

std::string FuelCellShop::Equation::EquationBase< dim >::name_base_variable

protected

Const std::string member storing name of the base solution variable corresponding to the equation represented by this class.

Referenced by FuelCellShop::Equation::NewFicksTransportEquation< dim >::set_solute_and_solvent(), and FuelCellShop::Equation::FicksTransportEquation< dim >::set_solute_and_solvent().

template<int dim>

std::vector< Point<dim> > FuelCellShop::Equation::EquationBase< dim >::normal_vectors

protected

Normal vectors in the quadrature points of a boundary.

template<int dim>

std::vector< OutputType > FuelCellShop::Equation::EquationBase< dim >::output_types

protected

The list of output types of a derived equation class.

template<int dim>

std::vector<unsigned int> FuelCellShop::Equation::EquationBase< dim >::residual_indices

protected

The residual indices (a derived equation class) drawn from the global structure (a derived equation class + other active equation classes included into the computation).

template<int dim>

std::string FuelCellShop::Equation::EquationBase< dim >::residual_vector_name

protected

The name of the residual vector name in FEVectors.

template<int dim>

std::string FuelCellShop::Equation::EquationBase< dim >::solution_vector_name

protected

The name of the solution vector in FEVectors.

template<int dim>

FuelCell::SystemManagement* FuelCellShop::Equation::EquationBase< dim >::system_management

protected

Pointer to the external YourApplication<dim>::system_management object.
