This class is created for the objects handed to the local integration functions. More...

#include <mesh_worker_info.h>

Inheritance diagram for MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >:

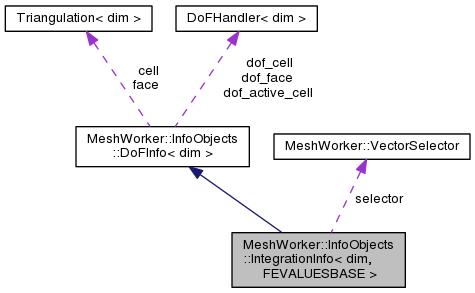

Collaboration diagram for MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >:

Public Member Functions
	IntegrationInfo (const BlockInfo &block_info)
	Constructor.

	IntegrationInfo (const FEVectors &data, const BlockInfo &block_info)

template<typename FEVALUES >
void	initialize (const FEVALUES *FE_VALUES, const FiniteElement< dim > &fe, const Mapping< dim > &mapping, const Quadrature< FEVALUES::integral_dimension > &quadrature, const UpdateFlags flags)
	Build internal structures like fevalv and allocate memory for values, gradients, hessians.

void	initialize_selector (const VectorSelector &s)
	Initialize the selector.

void	initialize_data (const FEVectors &data)
	Initialize the global_data.

void	clear ()
	Resize fevalv to 0.

const FEVALUESBASE &	fe () const
	Access to a single actual FEVALUES object.

const FEVALUESBASE &	fe (unsigned int i) const
	Access to a group of actual FEVALUES objects.

const FEVALUESBASE &	get_fe_val_unsplit () const
	(ZVN) Access to `fe_val_unsplit`.

template<typename DHCellIterator >
void	reinit (const DHCellIterator &c)
	Reinitialize internal data for use on a cell.

template<typename DHCellIterator , typename DHFaceIterator >
void	reinit (const DHCellIterator &c, const DHFaceIterator &f, const unsigned int fn)
	Reinitialize internal data for use on a face.

template<typename DHCellIterator , typename DHFaceIterator >
void	reinit (const DHCellIterator &c, const DHFaceIterator &f, const unsigned int fn, const unsigned int sn)
	Reinitialize internal data for use on a subface.

template<typename TYPE >
void	fill_local_data (std::vector< std::vector< std::vector< TYPE > > > &data, bool split_fevalues) const

Public Member Functions inherited from MeshWorker::InfoObjects::DoFInfo< dim >
	DoFInfo (const BlockInfo &block_info)
	Constructor.

	DoFInfo (const FEVectors &, const BlockInfo &block_info)

void	reinit (const DHCellIterator &c)
	Set the current cell and fill #indices.

void	reinit (const DHCellIterator &c, const DHFaceIterator &f, const unsigned int n)
	Set the current cell and face and fill #indices if the #cell changed.

void	reinit (const DHCellIterator &c, const DHFaceIterator &f, const unsigned int n, const unsigned int s)
	Set the current cell, face, and subface and fill #indices if the #cell changed.

Public Attributes
bool	multigrid
	This is true if we assemble for multigrid.

SmartPointer< const FEVectors >	global_data
	The smart pointer to the FEVectors object called global_data.

VectorSelector	selector
	This object selects the named FEVector vectors in global_data and assigns the types of information extracted.

std::vector< std::vector < std::vector< double > > >	values
	The vector containing the values of finite element functions in the quadrature points.

std::vector< std::vector < std::vector< Tensor< 1, dim > > > >	gradients
	The vector containing the gradients of finite element functions in the quadrature points.

std::vector< std::vector < std::vector< Tensor< 1, dim > > > > &	derivatives

std::vector< std::vector < std::vector< Tensor< 2, dim > > > >	hessians
	The vector containing the hessians of finite element functions in the quadrature points.

Public Attributes inherited from MeshWorker::InfoObjects::DoFInfo< dim >
DoFHandler< dim >::cell_iterator	dof_cell
	The current DoFHandler<dim> cell.

DoFHandler< dim > ::active_cell_iterator	dof_active_cell
	The current DoFHandler<dim> active cell.

DoFHandler< dim >::face_iterator	dof_face
	The current DoFHandler<dim> face.

Triangulation< dim >::cell_iterator	cell
	The current Triangulation<dim> cell.

Triangulation< dim >::face_iterator	face
	The current Triangulation<dim> face.

unsigned int	face_number
	The number of the current face on the current cell.

unsigned int	sub_number
	The number of the current subface on the current face of the current cell.

std::vector< unsigned int >	indices
	The local DoF indices associated with the current mesh entity.

SmartPointer< const BlockInfo >	block_info
	The block structure of the problem at hand.

Private Member Functions
template<typename TYPE >
void	fill_local_data (std::vector< std::vector< std::vector< TYPE > > > &data, VectorSelector &selector, bool split_fevalues) const
	Use the finite element functions in global_data and fill the vectors values, gradients, hessians.

Private Attributes
std::vector< boost::shared_ptr < FEVALUESBASE > >	fevalv
	The vector of smart pointers to FEVALUESBASE objects.

boost::shared_ptr< FEVALUESBASE >	fe_val_unsplit
	(ZVN) In the mode # 1 (or in the main mode), AppFrame splits an FEVALUESBASE object in several objects.

Detailed Description

template<int dim, typename FEVALUESBASE>
class MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >

This class is created for the objects handed to the local integration functions.

The objects of this class contain one or more objects of either type FEValues (cell) or FEFaceValues (face) or FESubfaceValues (subface) to be used in the local integration functions. They are stored in an array of pointers either to the base class FEValuesBase (cell) or to the base class FEFaceValuesBase (face, subface).

Therefore, the actual type FEVALUES must be either FEValues (cell) or FEFaceValues (face) or FESubfaceValues (subface). The template parameter FEVALUESBASE must be either FEValuesBase (cell) or FEFaceValuesBase (face, subface).

Additionally, this class includes containers to store the values (values), gradients (gradients), and hessians (hessians) of finite element functions, stored in global_data, in the quadrature points of mesh entities. You can use initialize_selector() function to select the FEVector vectors in global_data by names.

Integration models

This class supports two local integration models. One is the standard model suggested by the use of FESystem. Namely, there is one FEValuseBase object in this class, containing all shape functions of the whole system, and having as many components as the system has. Using this model involves loops over all system shape functions. It requires to identify the system components for each shape function and to select the correct bilinear form, usually in an if or switch statement.

The second local integration model builds one FEValuesBase object per base element of the system. The degrees of freedom on each cell are renumbered by block, such that they represent the same block structure as the global system. Objects performing the integration can then process each block separately, which improves reusability of code considerably.

Note: As described in DoFInfo, the use of the local block model is triggered by calling BlockInfo::initialize_local() before using initialize() in this class.

Author: Guido Kanschat, 2009; Valentin N. Zingan, 2012

Constructor & Destructor Documentation

template<int dim, typename FEVALUESBASE >

MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::IntegrationInfo ( const BlockInfo & block_info )

inline

Constructor.

template<int dim, typename FEVALUESBASE >

MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::IntegrationInfo	(	const FEVectors &	data,
		const BlockInfo &	block_info
	)

inline

Deprecated:: Constructor.

Member Function Documentation

template<int dim, typename FEVALUESBASE>

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::clear ( )

inline

Resize fevalv to 0.

In other words, clear fevalv.

template<int dim, typename FEVALUESBASE>

const FEVALUESBASE& MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::fe ( ) const

inline

Access to a single actual FEVALUES object.

template<int dim, typename FEVALUESBASE>

const FEVALUESBASE& MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::fe ( unsigned int i ) const

inline

Access to a group of actual FEVALUES objects.

template<int dim, typename FEVALUESBASE >

template<typename TYPE >

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::fill_local_data	(	std::vector< std::vector< std::vector< TYPE > > > &	data,
		bool	split_fevalues
	)		const

inline

Deprecated:: This is the old version not using the VectorSelector.

Use the finite element functions in global_data and fill the vectors values, gradients, hessians.

References MeshWorker::InfoObjects::fill_data().

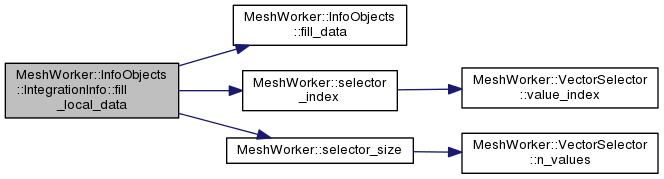

Here is the call graph for this function:

template<int dim, typename FEVALUESBASE >

template<typename TYPE >

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::fill_local_data	(	std::vector< std::vector< std::vector< TYPE > > > &	data,
		VectorSelector &	selector,
		bool	split_fevalues
	)		const

inlineprivate

Use the finite element functions in global_data and fill the vectors values, gradients, hessians.

References MeshWorker::InfoObjects::fill_data(), MeshWorker::selector_index(), and MeshWorker::selector_size().

Here is the call graph for this function:

template<int dim, typename FEVALUESBASE>

const FEVALUESBASE& MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::get_fe_val_unsplit ( ) const

inline

(ZVN) Access to fe_val_unsplit.

template<int dim, typename FEVALUESBASE >

template<typename FEVALUES >

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::initialize	(	const FEVALUES *	FE_VALUES,
		const FiniteElement< dim > &	fe,
		const Mapping< dim > &	mapping,
		const Quadrature< FEVALUES::integral_dimension > &	quadrature,
		const UpdateFlags	flags
	)

inline

Build internal structures like fevalv and allocate memory for values, gradients, hessians.

Parameters

FE_VALUES is an object of the actual type FEVALUES which is either FEValues (cell) or FEFaceValues (face) or FESubfaceValues (subface).

Note: #FE_VALUES is really not needed here and only serves to define the actual type FEVALUES.

Parameters

fe	is the finite element (for instance, FESystem object) stored in the DoFHandler. It is used in the constructor of #FE_VALUES.
mapping	is the Mapping object used to map the mesh cells. It is used in the constructor of #FE_VALUES.
quadrature	is a quadrature formula. It is used in the constructor of #FE_VALUES.
flags	are the UpdateFlags. They are used in the constructor of #FE_VALUES.

template<int dim, typename FEVALUESBASE>

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::initialize_data ( const FEVectors & data )

inline

Initialize the global_data.

Cache the selector.

template<int dim, typename FEVALUESBASE>

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::initialize_selector ( const VectorSelector & s )

inline

Initialize the selector.

Cache the selector.

template<int dim, typename FEVALUESBASE >

template<typename DHCellIterator >

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::reinit ( const DHCellIterator & c )

inline

Reinitialize internal data for use on a cell.

References MeshWorker::InfoObjects::DoFInfo< dim, spacedim >::reinit().

Here is the call graph for this function:

template<int dim, typename FEVALUESBASE >

template<typename DHCellIterator , typename DHFaceIterator >

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::reinit	(	const DHCellIterator &	c,
		const DHFaceIterator &	f,
		const unsigned int	fn
	)

inline

Reinitialize internal data for use on a face.

References MeshWorker::InfoObjects::DoFInfo< dim, spacedim >::reinit().

Here is the call graph for this function:

template<int dim, typename FEVALUESBASE >

template<typename DHCellIterator , typename DHFaceIterator >

void MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::reinit	(	const DHCellIterator &	c,
		const DHFaceIterator &	f,
		const unsigned int	fn,
		const unsigned int	sn
	)

inline

Reinitialize internal data for use on a subface.

References MeshWorker::InfoObjects::DoFInfo< dim, spacedim >::reinit().

Here is the call graph for this function:

Member Data Documentation

template<int dim, typename FEVALUESBASE>

std::vector< std::vector< std::vector< Tensor<1,dim> > > >& MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::derivatives

Deprecated:: Reference to gradients for compatibility.

template<int dim, typename FEVALUESBASE>

boost::shared_ptr<FEVALUESBASE> MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::fe_val_unsplit

private

(ZVN) In the mode # 1 (or in the main mode), AppFrame splits an FEVALUESBASE object in several objects.

Sometimes there is a need to keep the unsplit FEVALUESBASE object as well, even while in mode # 1.

Referenced by MeshWorker::InfoObjects::IntegrationInfo< dim, FEFaceValuesBase< dim > >::get_fe_val_unsplit().

template<int dim, typename FEVALUESBASE>

std::vector< boost::shared_ptr<FEVALUESBASE> > MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::fevalv

private

The vector of smart pointers to FEVALUESBASE objects.

Referenced by MeshWorker::InfoObjects::IntegrationInfo< dim, FEFaceValuesBase< dim > >::clear(), and MeshWorker::InfoObjects::IntegrationInfo< dim, FEFaceValuesBase< dim > >::fe().

template<int dim, typename FEVALUESBASE>

SmartPointer<const FEVectors> MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::global_data

The smart pointer to the FEVectors object called global_data.

It contains the named scalars and named vectors of an application.

Referenced by MeshWorker::InfoObjects::IntegrationInfo< dim, FEFaceValuesBase< dim > >::initialize_data(), and MeshWorker::InfoObjects::IntegrationInfo< dim, FEFaceValuesBase< dim > >::initialize_selector().

template<int dim, typename FEVALUESBASE>

std::vector< std::vector< std::vector< Tensor<1,dim> > > > MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::gradients

The vector containing the gradients of finite element functions in the quadrature points.

Example: nth solution, mth component, gradient at the qth quadrature point = gradients[n][m][q]

template<int dim, typename FEVALUESBASE>

std::vector< std::vector< std::vector< Tensor<2,dim> > > > MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::hessians

The vector containing the hessians of finite element functions in the quadrature points.

Example: nth solution, mth component, hessian at the qth quadrature point = hessians[n][m][q]

template<int dim, typename FEVALUESBASE>

bool MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::multigrid

This is true if we assemble for multigrid.

template<int dim, typename FEVALUESBASE>

VectorSelector MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::selector

This object selects the named FEVector vectors in global_data and assigns the types of information extracted.

These types are values, gradients, and hessians.

Referenced by MeshWorker::InfoObjects::IntegrationInfo< dim, FEFaceValuesBase< dim > >::initialize_data(), and MeshWorker::InfoObjects::IntegrationInfo< dim, FEFaceValuesBase< dim > >::initialize_selector().

template<int dim, typename FEVALUESBASE>

std::vector< std::vector< std::vector<double> > > MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >::values

The vector containing the values of finite element functions in the quadrature points.

Example: nth solution, mth component, value at the qth quadrature point = values[n][m][q]

The documentation for this class was generated from the following file:

mesh_worker_info.h

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Detailed Description

template<int dim, typename FEVALUESBASE> class MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >

Integration models

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<int dim, typename FEVALUESBASE>
class MeshWorker::InfoObjects::IntegrationInfo< dim, FEVALUESBASE >
