This class characterizes a macro-homogeneous catalyst layer and should be used in the case of constant effective properties, viz., effective_proton_conductivity, effective_gas_diffusivity, effective_electron_conductivity and effective_thermal_conductivity. More...

#include <dummy_CL.h>

Inheritance diagram for FuelCellShop::Layer::DummyCL< dim >:

[legend]

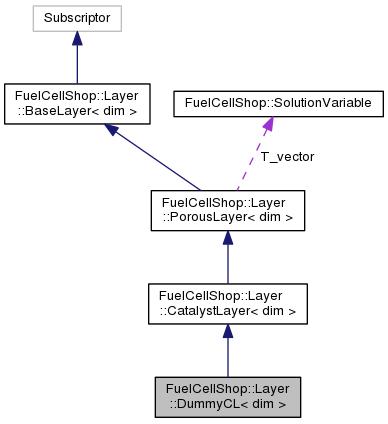

Collaboration diagram for FuelCellShop::Layer::DummyCL< dim >:

[legend]

Public Member Functions
Constructors, destructor, and initalization
	DummyCL ()
	Prototype Constructor.

	~DummyCL ()
	Destructor.

virtual void	declare_parameters (ParameterHandler &param) const
	Declare all necessary parameters in order to compute the coefficients.

virtual void	initialize (ParameterHandler &param)
	Member function used to read in data and initialize the necessary data to compute the coefficients.

Accessors and info
virtual void	effective_gas_diffusivity (Table< 2, Tensor< 2, dim > > &) const
	Compute the effective diffusivty in the CL.

virtual void	effective_electron_conductivity (double &) const
	Compute the effective electron conductivity in the CL.

virtual void	effective_electron_conductivity (Tensor< 2, dim > &) const
	Compute the effective electron conductivity in the CL.

virtual void	effective_proton_conductivity (double &) const
	Compute the effective proton conductivity in the CL.

virtual void	effective_proton_conductivity (std::vector< double > &) const
	Compute the effective proton conductivity in the CL, at quadrature points in the cell.

virtual void	derivative_effective_proton_conductivity (std::map< VariableNames, std::vector< double > > &) const
	Compute the derivative of the effective proton conductivity in the CL with respect to either the solution or design parameters.

double	get_active_area_Pt () const
	Get the active area of platinum per unit volume of CL.

virtual void	current_density (std::vector< double > &)
	This member function will use a FuelCellShop::Kinetics class in order to compute the current density production in the CL.

virtual void	derivative_current_density (std::map< VariableNames, std::vector< double > > &)
	This member function will use a FuelCellShop::Kinetics class in order to compute the derivative of the current density with respect to the variables setup using set_derivative_flags method.

virtual void	current_density (std::vector< double > &current, std::vector< double > &effectiveness)
	This member function computes the current density production in the CL.

Public Member Functions inherited from FuelCellShop::Layer::CatalystLayer< dim >
virtual void	set_constant_solution (const double &value, const VariableNames &name)
	Set those solution variables which are constant in the particular application.

virtual void	set_solution (const std::vector< SolutionVariable > &)
	This method is used to set the solution variable values in the kinetics object, at all quadrature points in the cell.

virtual void	set_derivative_flags (const std::vector< VariableNames > &flags)
	Method used to set the variables for which you would like to compute the derivatives in the catalyst layer.

void	set_reaction_kinetics (const std::string &rxn_name)
	Member function used to specify the reaction for which the kinetic parameters are needed, for example for a Platinum catalyst, we can specify that we need the kinetic parameters for either the oxygen reduction reaction (ORR) or the hydrogen oxidation reaction (HOR)

const std::type_info &	get_base_type () const
	This member function returns a type_info object with the name of the base layer type the inherited class belongs to, i.e.

virtual void	effective_gas_diffusivity (const double &, double &) const
	Compute the effective diffusivty in the CL.

virtual void	effective_gas_diffusivity (Table< 2, double > &) const
	Return the effective diffusivty in the GDL for all the gases assigned to the layer using set_gases_and_compute.

virtual void	derivative_effective_electron_conductivity (std::vector< double > &) const
	Compute the derivative of the effective electron conductivity in the GDL with respect to either the solution or design parameters.

virtual void	derivative_effective_electron_conductivity (std::vector< Tensor< 2, dim > > &) const
	Compute the derivative of the effective electron conductivity in the GDL with respect to either the solution or design parameters.

virtual void	effective_water_diffusivity (double &) const
	Compute the effective water diffusivity (lambda diffusivity) in the CL.

virtual void	effective_water_diffusivity (std::vector< double > &) const
	Compute the effective water diffusivity (lambda diffusivity) at all quadrature points in the CL.

virtual void	derivative_effective_water_diffusivity (std::map< VariableNames, std::vector< double > > &) const
	Compute the derivative of the effective water diffusivity (lambda diffusivity) in the CL with respect to either the solution or design parameters.

virtual void	gas_permeablity (double &) const
	Compute the CL gas permeability.

virtual void	gas_permeablity (Tensor< 2, dim > &) const
	Compute the CL gas permeability.

virtual void	derivative_gas_permeablity (std::vector< double > &) const
	Compute the derivative of the effective gas permeability in the GDL with respect to either the solution or design parameters.

virtual void	derivative_gas_permeablity (std::vector< Tensor< 2, dim > > &) const
	Compute the derivative of the effective gas permeability in the GDL with respect to either the solution or design parameters.

virtual void	liquid_permeablity (double &) const
	Compute the GDL liquid permeability.

virtual void	liquid_permeablity (Tensor< 2, dim > &) const
	Compute the GDL liquid permeability.

virtual void	derivative_liquid_permeablity (std::vector< double > &) const
	Compute the derivative of the effective gas diffusion in the GDL with respect to either the solution or design parameters.

virtual void	derivative_liquid_permeablity (std::vector< Tensor< 2, dim > > &) const
	Compute the derivative of the effective gas diffusion in the GDL with respect to either the solution or design parameters.

virtual FuelCellShop::Material::PolymerElectrolyteBase *	get_electrolyte () const
	Method to provide access to pointer of the electrolyte object of the catalyst layer.

virtual FuelCellShop::Kinetics::BaseKinetics *	get_kinetics () const
	Method to provide access to pointer of the kinetic object of the catalyst layer.

Public Member Functions inherited from FuelCellShop::Layer::PorousLayer< dim >
void	set_gases_and_compute (std::vector< FuelCellShop::Material::PureGas * > &gases_in, const double &pressure_in, const double &temperature_in)
	Member function used to store all the gases that are in the pore space in the gas diffusion layer as well as their temperature [`Kelvin`] and total pressure [`atm`].

void	compute_gas_diffusion (FuelCellShop::Material::PureGas solute_gas, FuelCellShop::Material::PureGas solvent_gas)
	Member function used to compute bulk diffusion coefficients and derivatives w.r.t temperature for non-isothermal case and store inside the layer.

void	set_gases (std::vector< FuelCellShop::Material::PureGas * > &gases_in, const double &pressure_in)
	Member function used to store all the gases that are in the pore space in the porous layer.

void	set_temperature (const SolutionVariable &T_in)
	Member function used to set the temperature ]`Kelvin`] at every quadrature point inside the cell.

FuelCellShop::Material::PureGas *	get_gas_pointer (int index) const
	Return the FuelCellShop::Material::PureGas pointer that is stored inside the class in the ith position.

std::vector < FuelCellShop::Material::PureGas * >	get_gases () const
	Returns the vector of FuelCellShop::Material::PureGas pointers stored in the porous layer.

void	get_gas_index (FuelCellShop::Material::PureGas *gas_type, int &index) const
	Return the gas index in the GDL class.

void	get_T_and_p (double &T, double &p) const
	Return the constant temperature [`Kelvin`] and constant pressure [`atm`] inside the layer.

void	get_p (double &p) const
	Return the constant pressure [`atm`] inside the layer.

virtual void	print_layer_properties () const
	This member function is a virtual class that can be used to output to screen information from the layer.

virtual bool	test_layer () const
	This virtual class should be used for any derived class to be able to test the functionality of the class.

Public Member Functions inherited from FuelCellShop::Layer::BaseLayer< dim >
void	set_position (std::vector< Point< dim > > &p)
	Member function used by some applications such as dummyGDL in order to know which value to return.

bool	belongs_to_material (const char material_id)
	Check if a given cell belongs to the catalyst layer.

const std::string &	name_material ()
	Return the name of the layer.

virtual bool	test_layer ()
	This virtual class should be used for any derived class to be able to test the functionality of the class.

unsigned int	get_material_id ()
	Return the material id of the layer.

Static Public Attributes
static const std::string	concrete_name
	Concrete name used for objects of this class.

Private Member Functions
Constructors
	DummyCL (const std::string &name)
	Constructor.

void	declare_parameters (const std::string &name, ParameterHandler &param) const
	Declare parameters for a parameter file.

void	set_parameters (const std::vector< std::string > &name_dvar, const std::vector< double > &value_dvar, const std::string &cl_section_name, ParameterHandler &param) const
	Member function used to set new parameters values in the optimization loop.

Private Attributes
Internal variables
double	D_O2
	Oxygen diffusion coefficient.

double	D_wv
	Water vapour diffusion coefficient.

double	sigma_e
	Solid network conductivity.

double	sigma_m
	Membrane phase conductivity.

double	Av
	Active area of catalyst per unit volume of catalyst layer.

Instance Delivery
static DummyCL< dim > const *	PROTOTYPE

virtual boost::shared_ptr < FuelCellShop::Layer::CatalystLayer < dim > >	create_replica (const std::string &name)
	This member function is used to create an object of type gas diffusion layer.

Additional Inherited Members
Static Public Member Functions inherited from FuelCellShop::Layer::CatalystLayer< dim >
static void	declare_CatalystLayer_parameters (const std::string &cl_section_name, ParameterHandler &param)
	Function used to declare all the data necessary in the parameter files former all CatalystLayer children.

static void	set_CatalystLayer_parameters (const std::vector< std::string > &name_dvar, const std::vector< double > &value_dvar, const std::string &cl_section_name, ParameterHandler &param)

static boost::shared_ptr < FuelCellShop::Layer::CatalystLayer < dim > >	create_CatalystLayer (const std::string &cl_section_name, ParameterHandler &param)
	Function used to select the appropriate CatalystLayer type as specified in the ParameterHandler under line.

Protected Types inherited from FuelCellShop::Layer::CatalystLayer< dim >
typedef std::map< std::string, CatalystLayer< dim > * >	_mapFactory
	This object is used to store all objects of type CatalystLayer.

Protected Member Functions inherited from FuelCellShop::Layer::CatalystLayer< dim >
	CatalystLayer ()

	~CatalystLayer ()
	Destructor.

	CatalystLayer (const std::string &name)
	Constructor.

Static Protected Member Functions inherited from FuelCellShop::Layer::CatalystLayer< dim >
static _mapFactory *	get_mapFactory ()
	Return the map library that stores all childrens of this class.

Protected Attributes inherited from FuelCellShop::Layer::CatalystLayer< dim >
std::string	diffusion_species_name
	If CL properties are stored inside the class (e.g.

bool	default_materials
	If the default materials are used in the layer, this will be set to true.

std::string	catalyst_type
	Catalyst type from input file.

std::string	catalyst_support_type
	Catalyst Support type from input file.

std::string	electrolyte_type
	Electrolyte type from input file.

std::string	kinetics_type
	Kinetic class type from input file.

boost::shared_ptr < FuelCellShop::Material::PolymerElectrolyteBase >	electrolyte
	Pointer to the electrolyte object created in the application that is used to calculate the properties of the electrolyte in the catalyst layer.

boost::shared_ptr < FuelCellShop::Material::CatalystSupportBase >	catalyst_support
	Pointer to the catalyst support object created in the application that is used to calculate the carbon black conductivity in the catalyst layer.

boost::shared_ptr < FuelCellShop::Material::CatalystBase >	catalyst
	Pointer to the catalyst object created in the application that is used to store the properties of the catalyst used in the layer.

boost::shared_ptr < FuelCellShop::Kinetics::BaseKinetics >	kinetics
	Pointer to a kinetics object.

unsigned int	n_quad
	Stores the number of quadrature points in the cell.

std::map< VariableNames,SolutionVariable >	solutions
	Map storing solution variables.

VariableNames	reactant
	Name of the reactant which is being solved for in the catalyst layer.

Friend class for Unit Testing

Detailed Description

template<int dim>
class FuelCellShop::Layer::DummyCL< dim >

This class characterizes a macro-homogeneous catalyst layer and should be used in the case of constant effective properties, viz., effective_proton_conductivity, effective_gas_diffusivity, effective_electron_conductivity and effective_thermal_conductivity.

Note: These constant effective properties should be set using the parameter file.

Author: M. Secanell and M. Bhaiya, 2011-13

Constructor & Destructor Documentation

template<int dim>

FuelCellShop::Layer::DummyCL< dim >::DummyCL ( )

Prototype Constructor.

Warning: For internal use only

template<int dim>

FuelCellShop::Layer::DummyCL< dim >::~DummyCL ( )

Destructor.

template<int dim>

FuelCellShop::Layer::DummyCL< dim >::DummyCL ( const std::string & name )

private

Constructor.

Member Function Documentation

template<int dim>

virtual boost::shared_ptr<FuelCellShop::Layer::CatalystLayer<dim> > FuelCellShop::Layer::DummyCL< dim >::create_replica ( const std::string & name )

inlineprivatevirtual

This member function is used to create an object of type gas diffusion layer.

Warning: This class MUST be redeclared in every child.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

References FuelCellShop::Layer::BaseLayer< dim >::name.

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::current_density ( std::vector< double > & )

virtual

This member function will use a FuelCellShop::Kinetics class in order to compute the current density production in the CL.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

Referenced by FuelCellShop::Layer::DummyCL< dim >::current_density().

Here is the caller graph for this function:

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::current_density	(	std::vector< double > &	current,
		std::vector< double > &	effectiveness
	)

inlinevirtual

This member function computes the current density production in the CL.

First argument is current density, and second is effectiveness, at all quadrature points in the cell. Since this is a dummy layer, effectiveness is filled as 1.0

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

References FuelCellShop::Layer::DummyCL< dim >::current_density().

Here is the call graph for this function:

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::declare_parameters ( ParameterHandler & param ) const

inlinevirtual

Declare all necessary parameters in order to compute the coefficients.

Deprecated:: Use declare_all_CatalystLayer_parameters

Reimplemented from FuelCellShop::Layer::PorousLayer< dim >.

References FuelCellShop::Layer::BaseLayer< dim >::name.

template<int dim>

void FuelCellShop::Layer::DummyCL< dim >::declare_parameters	(	const std::string &	name,
		ParameterHandler &	param
	)		const

inlineprivatevirtual

Declare parameters for a parameter file.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

References FuelCellShop::Layer::DummyCL< dim >::concrete_name, and FuelCellShop::Layer::CatalystLayer< dim >::declare_parameters().

Here is the call graph for this function:

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::derivative_current_density ( std::map< VariableNames, std::vector< double > > & )

virtual

This member function will use a FuelCellShop::Kinetics class in order to compute the derivative of the current density with respect to the variables setup using set_derivative_flags method.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::derivative_effective_proton_conductivity ( std::map< VariableNames, std::vector< double > > & ) const

virtual

Compute the derivative of the effective proton conductivity in the CL with respect to either the solution or design parameters.

The parameters with respect to which the derivatives are computed are setup in FuelCellShop::Layer::set_derivative_flags()

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::effective_electron_conductivity ( double & ) const

virtual

Compute the effective electron conductivity in the CL.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::effective_electron_conductivity ( Tensor< 2, dim > & ) const

virtual

Compute the effective electron conductivity in the CL.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::effective_gas_diffusivity ( Table< 2, Tensor< 2, dim > > & ) const

virtual

Compute the effective diffusivty in the CL.

This routine takes the gas diffusivity from FuelCellShop::BinaryDiffusion and transforms it into an effective property taking into account the porosity and structure of the CL

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::effective_proton_conductivity ( double & ) const

virtual

Compute the effective proton conductivity in the CL.

Note: This class is awesome for testing the capabilites of the model since it could be implemented as dependant on the solution or not... In this first iteration, I've implemented it as constant

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::effective_proton_conductivity ( std::vector< double > & ) const

virtual

Compute the effective proton conductivity in the CL, at quadrature points in the cell.

Note: Input vector should be initialized (size set to number of quadrature points), before passing over to this function.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

template<int dim>

double FuelCellShop::Layer::DummyCL< dim >::get_active_area_Pt ( ) const

inlinevirtual

Get the active area of platinum per unit volume of CL.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

References FuelCellShop::Layer::DummyCL< dim >::Av.

template<int dim>

virtual void FuelCellShop::Layer::DummyCL< dim >::initialize ( ParameterHandler & param )

virtual

Member function used to read in data and initialize the necessary data to compute the coefficients.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

template<int dim>

void FuelCellShop::Layer::DummyCL< dim >::set_parameters	(	const std::vector< std::string > &	name_dvar,
		const std::vector< double > &	value_dvar,
		const std::string &	cl_section_name,
		ParameterHandler &	param
	)		const

privatevirtual

Member function used to set new parameters values in the optimization loop.

Reimplemented from FuelCellShop::Layer::CatalystLayer< dim >.

Member Data Documentation

template<int dim>

double FuelCellShop::Layer::DummyCL< dim >::Av

private

Active area of catalyst per unit volume of catalyst layer.

Referenced by FuelCellShop::Layer::DummyCL< dim >::get_active_area_Pt().

template<int dim>

const std::string FuelCellShop::Layer::DummyCL< dim >::concrete_name

static

Concrete name used for objects of this class.

This name is used when setting up the subsection where the data is stored in the input file.

The data will be store under

subsection name_specified_in_constructor
   set Material id = 2
   set Gas diffusion layer type = DummyGDL # <-here I select the type of object of type GasDiffusionLayer
   subsection DummyGDL # <- this is the concrete_name for this class
      set all info relevant to this object
   end
end
