This class is initialized with an application that describes the linearization of the problem that we would like to solve and the nonlinear solver that drives the process (usually a Newton loop). More...

#include <adaptive_refinement.h>

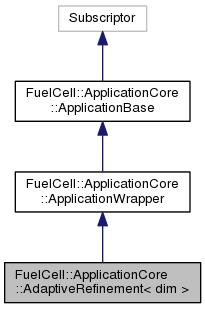

Inheritance diagram for FuelCell::ApplicationCore::AdaptiveRefinement< dim >:

[legend]

Collaboration diagram for FuelCell::ApplicationCore::AdaptiveRefinement< dim >:

[legend]

Public Member Functions
	AdaptiveRefinement (FuelCell::ApplicationCore::ApplicationBase &application)
	Constructor. More...

	AdaptiveRefinement (FuelCell::ApplicationCore::OptimizationBlockMatrixApplication< dim > &app_lin, FuelCell::ApplicationCore::ApplicationWrapper &app, const FuelCell::ApplicationCore::FEVector &solution=FuelCell::ApplicationCore::FEVector())
	Constructor. More...

	~AdaptiveRefinement ()

void	declare_parameters (ParameterHandler &param) const
	Declare all parameters that are needed for: More...

void	initialize (ParameterHandler &param)
	Set up how many equations are needed and read in parameters for the parameter handler in order to initialize data. More...

void	test_derivatives (const std::string input_file, const std::string dvar, const double value, std::vector< double > &resp, std::vector< std::vector< double > > &dresp, const bool gradient=true)
	Member function used to test the derivatives. More...

void	print_parameters () const
	Print parameters: More...

const FuelCell::ApplicationCore::FEVector &	get_solution () const
	This function returns `solution`. More...

const FuelCell::ApplicationCore::FEVector &	get_coarse_solution () const
	This function returns `coarse_solution`. More...

const Triangulation< dim > &	get_coarse_triangulation () const
	This function returns `coarse_triangulation`. More...

Solving functions
void	solve (const std::string param_file, ParameterHandler &param, bool solution_component_changes_between_data_files=false)
	Solve the nonlinear problem. More...

void	run_app (bool solution_component_changes_between_data_files=false)
	Run application. More...

void	run_app (std::vector< double > &resp, bool solution_component_changes_between_data_files=false)
	Run application. More...

void	run_app (std::vector< double > &resp, std::vector< std::vector< double > > &dresp_dl, bool solution_component_changes_between_data_files=false)
	Run application. More...

Public Member Functions inherited from FuelCell::ApplicationCore::ApplicationWrapper
	ApplicationWrapper (ApplicationBase &app)
	Constructor for a derived application. More...

	~ApplicationWrapper ()
	Destructor. More...

virtual void	declare_parameters (ParameterHandler &param)
	Declare parameters for a parameter file. More...

virtual void	remesh ()
	Generate the next mesh depending on the mesh generation parameters. More...

virtual void	init_vector (FEVector &dst) const
	Initialize vector to problem size. More...

virtual double	residual (FEVector &dst, const FEVectors &src, bool apply_boundaries=true)
	Compute residual of `src` and store it into `dst`. More...

virtual void	solve (FEVector &dst, const FEVectors &src)
	Solve the system assembled with right hand side in FEVectors `src` and return the result in FEVector `dst`. More...

virtual void	Tsolve (FEVector &dst, const FEVectors &src)
	Solve the dual system assembled with right hand side `rhs` and return the result in `start`. More...

virtual double	estimate (const FEVectors &src)
	Estimate cell-wise errors. More...

virtual double	evaluate (const FEVectors &src)
	Evaluate a functional. More...

virtual void	grid_out (const std::string &filename) const

virtual void	data_out (const std::string &filename, const FEVectors &src)
	Write data in the format specified by the ParameterHandler. More...

virtual std::string	id () const
	Return a unique identification string for this application. More...

virtual void	notify (const Event &reason)
	Add a reason for assembling. More...

Public Member Functions inherited from FuelCell::ApplicationCore::ApplicationBase
	ApplicationBase (boost::shared_ptr< ApplicationData > data=boost::shared_ptr< ApplicationData >())
	Constructor for an application. More...

	ApplicationBase (const ApplicationBase &other)
	Copy constructor. More...

virtual	~ApplicationBase ()
	Virtual destructor. More...

void	print_parameters_to_file (ParameterHandler &param, const std::string &file_name, const ParameterHandler::OutputStyle &style)
	Print default parameters for the application to a file. More...

virtual void	start_vector (FEVector &dst, std::string) const
	Initialize vector to problem size. More...

virtual void	grid_out (const std::string &)
	Write the mesh in the format specified by the ParameterHandler. More...

boost::shared_ptr < ApplicationData >	get_data ()
	Get access to the protected variable data. More...

const boost::shared_ptr < ApplicationData >	get_data () const
	Get read-only access to the protected variable data. More...

virtual void	clear ()
	All `true` in `notifications`. More...

virtual void	clear_events ()
	All `false` in `notifications`. More...

virtual unsigned int	get_solution_index ()
	Returns solution index. More...

Private Member Functions
void	print_convergence_table ()

Private Attributes
std::string	filename_initial_mesh
	Filename where to output the initial grid. More...

bool	output_initial_mesh
	Flag to specify if the initial grid should be saved to a file. More...

bool	output_intermediate_sol
	Boolean flag that is set to true if intermediate solutions, i.e. More...

bool	output_final_sol
	Boolean flag used to specify if the final solution should be output to a file. More...

std::string	filename_final_sol
	Filename where the final solution will be output. More...

bool	output_intermediate_resp
	Bool flag used to specify if all responses/functionals should be evaluated at intermediate refinement levels. More...

bool	L1_L2_error_and_convergence_rate
	Use `true` if you have the exact or analytical solution to compare your numerical results with. More...

bool	nonlinear_solver_for_linear_problem
	Use `true` along with zero initial guess defined in your application to solve a linear problem by means of using any of the FCST nonlinear solvers. More...

unsigned int	n_ref
	Number of initial refinements for the original mesh. More...

bool	gradients
	Compute the gradients? More...

Triangulation< dim >	coarse_triangulation
	Initial mesh. More...

FuelCell::ApplicationCore::OptimizationBlockMatrixApplication < dim > *	app_linear
	Pointer to linear application. More...

FuelCell::ApplicationCore::ApplicationWrapper *	app
	Poiner to nonlinear application. More...

FuelCell::ApplicationCore::FEVector	solution
	Global FE solution at the support points of the most refined mesh. More...

FuelCell::ApplicationCore::FEVector	coarse_solution
	Global FE solution at the support points of the initial mesh. More...

std::vector< ConvergenceTable >	convergence_tables
	If the exact or analytical solution is available, then those convergence tables collect all necessary information on L1 and L2 norms of the error and convergence rates for each particular component of the numerical solution. More...

Additional Inherited Members
Protected Member Functions inherited from FuelCell::ApplicationCore::ApplicationWrapper
SmartPointer< ApplicationBase >	get_wrapped_application ()
	Gain access to the inner application. More...

Protected Member Functions inherited from FuelCell::ApplicationCore::ApplicationBase
void	print_caller_name (const std::string &caller_name) const
	Print caller name. More...

Protected Attributes inherited from FuelCell::ApplicationCore::ApplicationWrapper
SmartPointer< ApplicationBase >	app
	Pointer to the application this one depends upon. More...

Protected Attributes inherited from FuelCell::ApplicationCore::ApplicationBase
boost::shared_ptr < ApplicationData >	data
	Object for auxiliary data. More...

Event	notifications
	Accumulate reasons for assembling here. More...

Detailed Description

template<int dim>
class FuelCell::ApplicationCore::AdaptiveRefinement< dim >

This class is initialized with an application that describes the linearization of the problem that we would like to solve and the nonlinear solver that drives the process (usually a Newton loop).

Then, this class implements the adaptive refinement loop for the application.

Author: M. Secanell, 2006-13

and the concept of sequential applications, simplified parameter study without Dakota, and convergence tables by

Author: Valentin N. Zingan

Constructor & Destructor Documentation

template<int dim>

FuelCell::ApplicationCore::AdaptiveRefinement< dim >::AdaptiveRefinement ( FuelCell::ApplicationCore::ApplicationBase & application )

inline

Constructor.

References FuelCell::ApplicationCore::AdaptiveRefinement< dim >::solution.

template<int dim>

FuelCell::ApplicationCore::AdaptiveRefinement< dim >::AdaptiveRefinement	(	FuelCell::ApplicationCore::OptimizationBlockMatrixApplication< dim > &	app_lin,
		FuelCell::ApplicationCore::ApplicationWrapper &	app,
		const FuelCell::ApplicationCore::FEVector &	solution = `FuelCell::ApplicationCore::FEVector()`
	)

Constructor.

template<int dim>

FuelCell::ApplicationCore::AdaptiveRefinement< dim >::~AdaptiveRefinement ( )

Member Function Documentation

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::declare_parameters ( ParameterHandler & param ) const

Declare all parameters that are needed for:

- control of adaptive refinement loop
- control of output options during the loop, e.g. return the solution at each cycle

Currently the options implemented are:

* subsection Adaptive refinement
*   set Number of Refinements = 1                   # Number of adaptive refinements used
*   set Output initial mesh = false                 # Set flag to true if you want to output a EPS figure of the initial mesh using the value in file initial mesh
*   set Output initial mesh filename = initial_mesh # File where the initial mesh will be output
*   set Output initial solution = false             # Set flag to true if you want to output the initial solution to file
*   set Initial solution filename = initial_sol     # File where the initial solution will be output
*   set Output intermediate solutions = true        # Output the solution after each adaptive refinement level
*   set Output intermediate responses = true        # Output any functional such as current density at each refinement level
*   set Output final solution = true                # Output final solution to a file named fuel_cell-sol-cycleX where X is the cycle name.
*   set Output solution for transfer = false        # Check whether a solution on a refined grid should be output to file on a coarse mesh
*   set Read in initial solution from file = false  # Check whether a stored solution should be read from file and applied to the grid
* end
*

template<int dim>

const FuelCell::ApplicationCore::FEVector& FuelCell::ApplicationCore::AdaptiveRefinement< dim >::get_coarse_solution ( ) const

inline

This function returns coarse_solution.

References FuelCell::ApplicationCore::AdaptiveRefinement< dim >::coarse_solution.

template<int dim>

const Triangulation<dim>& FuelCell::ApplicationCore::AdaptiveRefinement< dim >::get_coarse_triangulation ( ) const

inline

This function returns coarse_triangulation.

References FuelCell::ApplicationCore::AdaptiveRefinement< dim >::coarse_triangulation.

template<int dim>

const FuelCell::ApplicationCore::FEVector& FuelCell::ApplicationCore::AdaptiveRefinement< dim >::get_solution ( ) const

inline

This function returns solution.

References FuelCell::ApplicationCore::AdaptiveRefinement< dim >::solution.

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::initialize ( ParameterHandler & param )

virtual

Set up how many equations are needed and read in parameters for the parameter handler in order to initialize data.

Reimplemented from FuelCell::ApplicationCore::ApplicationWrapper.

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::print_convergence_table ( )

private

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::print_parameters ( ) const

Print parameters:

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::run_app ( bool solution_component_changes_between_data_files = false )

Run application.

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::run_app	(	std::vector< double > &	resp,
		bool	solution_component_changes_between_data_files = `false`
	)

Run application.

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::run_app	(	std::vector< double > &	resp,
		std::vector< std::vector< double > > &	dresp_dl,
		bool	solution_component_changes_between_data_files = `false`
	)

Run application.

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::solve	(	const std::string	param_file,
		ParameterHandler &	param,
		bool	solution_component_changes_between_data_files = `false`
	)

Solve the nonlinear problem.

template<int dim>

void FuelCell::ApplicationCore::AdaptiveRefinement< dim >::test_derivatives	(	const std::string	input_file,
		const std::string	dvar,
		const double	value,
		std::vector< double > &	resp,
		std::vector< std::vector< double > > &	dresp,
		const bool	gradient = `true`
	)

Member function used to test the derivatives.

Member Data Documentation

template<int dim>

FuelCell::ApplicationCore::ApplicationWrapper* FuelCell::ApplicationCore::AdaptiveRefinement< dim >::app

private

Poiner to nonlinear application.

template<int dim>

FuelCell::ApplicationCore::OptimizationBlockMatrixApplication<dim>* FuelCell::ApplicationCore::AdaptiveRefinement< dim >::app_linear

private

Pointer to linear application.

template<int dim>

FuelCell::ApplicationCore::FEVector FuelCell::ApplicationCore::AdaptiveRefinement< dim >::coarse_solution

private

Global FE solution at the support points of the initial mesh.

Referenced by FuelCell::ApplicationCore::AdaptiveRefinement< dim >::get_coarse_solution().

template<int dim>

Triangulation<dim> FuelCell::ApplicationCore::AdaptiveRefinement< dim >::coarse_triangulation

private

Initial mesh.

Referenced by FuelCell::ApplicationCore::AdaptiveRefinement< dim >::get_coarse_triangulation().

template<int dim>

std::vector< ConvergenceTable > FuelCell::ApplicationCore::AdaptiveRefinement< dim >::convergence_tables

private

If the exact or analytical solution is available, then those convergence tables collect all necessary information on L1 and L2 norms of the error and convergence rates for each particular component of the numerical solution.

template<int dim>

std::string FuelCell::ApplicationCore::AdaptiveRefinement< dim >::filename_final_sol

private

Filename where the final solution will be output.

The final format of the solution will be as follows: filename_final_sol+"_Cycle_" + grid_streamOut.str() + "_Sol_" + sol_streamOut.str(); where Cycle refers to the adaptive refinement cycle and Sol refers to the point in the polarization curve.

template<int dim>

std::string FuelCell::ApplicationCore::AdaptiveRefinement< dim >::filename_initial_mesh

private

Filename where to output the initial grid.

template<int dim>

bool FuelCell::ApplicationCore::AdaptiveRefinement< dim >::gradients

private

Compute the gradients?

template<int dim>

bool FuelCell::ApplicationCore::AdaptiveRefinement< dim >::L1_L2_error_and_convergence_rate

private

Use true if you have the exact or analytical solution to compare your numerical results with.

template<int dim>

unsigned int FuelCell::ApplicationCore::AdaptiveRefinement< dim >::n_ref

private

Number of initial refinements for the original mesh.

Low Priority Todo:: Change the loop so that zero refinements means once through the loop

template<int dim>

bool FuelCell::ApplicationCore::AdaptiveRefinement< dim >::nonlinear_solver_for_linear_problem

private

Use true along with zero initial guess defined in your application to solve a linear problem by means of using any of the FCST nonlinear solvers.

template<int dim>

bool FuelCell::ApplicationCore::AdaptiveRefinement< dim >::output_final_sol

private

Boolean flag used to specify if the final solution should be output to a file.

This flag is set via the input file using:

* subsection Adaptive refinement
*   set Output final solution = true                # Output final solution to a file named fuel_cell-sol-cycleX where X is the cycle name.
* end
*

template<int dim>

bool FuelCell::ApplicationCore::AdaptiveRefinement< dim >::output_initial_mesh

private

Flag to specify if the initial grid should be saved to a file.

This flag is initialized via the input file using:

* subsection Adaptive refinement
*   set Output initial mesh = false                 # Set flag to true if you want to output a EPS figure of the initial mesh using the value in file initial mesh
* end
*

template<int dim>

bool FuelCell::ApplicationCore::AdaptiveRefinement< dim >::output_intermediate_resp

private

Bool flag used to specify if all responses/functionals should be evaluated at intermediate refinement levels.

This is useful when trying to estimate if the solution is grid independent as eventually the functionals and solution should become independent of refinement level.

This flag is set via the input file using:

* subsection Adaptive refinement
*   set Output intermediate responses = true        # Output any functional such as current density at each refinement level
* end
*

template<int dim>

bool FuelCell::ApplicationCore::AdaptiveRefinement< dim >::output_intermediate_sol

private

Boolean flag that is set to true if intermediate solutions, i.e.

solutions at intermediate adaptive refinement levels should be saved to file. This flag is set via input file with:

* subsection Adaptive refinement
*  set Output intermediate solutions = false
* end
*

template<int dim>

FuelCell::ApplicationCore::FEVector FuelCell::ApplicationCore::AdaptiveRefinement< dim >::solution

private

Global FE solution at the support points of the most refined mesh.

Referenced by FuelCell::ApplicationCore::AdaptiveRefinement< dim >::AdaptiveRefinement(), and FuelCell::ApplicationCore::AdaptiveRefinement< dim >::get_solution().

The documentation for this class was generated from the following file:

adaptive_refinement.h

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

template<int dim> class FuelCell::ApplicationCore::AdaptiveRefinement< dim >

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<int dim>
class FuelCell::ApplicationCore::AdaptiveRefinement< dim >
