Class used to calculate the electronic ohmic heat generated in the electron conducting layers, viz., GDL, MPL and CL. More...

#include <response_ohmic_heat.h>

Inheritance diagram for FuelCellShop::PostProcessing::ElectronOhmicHeatResponse< dim >:

[legend]

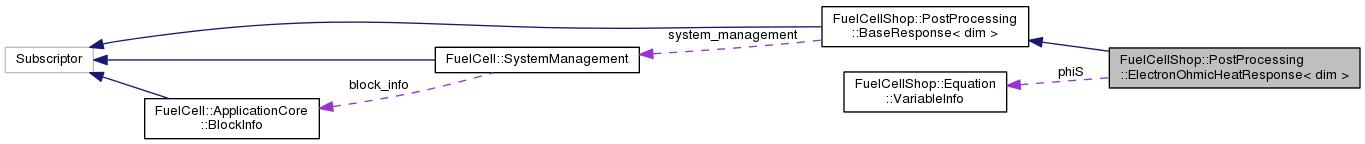

Collaboration diagram for FuelCellShop::PostProcessing::ElectronOhmicHeatResponse< dim >:

[legend]

Public Member Functions
Constructor, declaration and initialization
	ElectronOhmicHeatResponse (const FuelCell::SystemManagement &sm, const FuelCellShop::Equation::ThermalTransportEquation< dim > *tte)

	~ElectronOhmicHeatResponse ()

void	initialize (ParameterHandler &param)
	Initialize class. More...

Compute functional
void	compute_responses (const typename DoFApplication< dim >::CellInfo &info, FuelCellShop::Layer::BaseLayer< dim > *const layer, std::map< FuelCellShop::PostProcessing::ResponsesNames, double > &respMap) const
	This member function computes the ohmic heat generated due to electron transport inside the layer. More...

void	compute_responses (std::vector< FuelCellShop::SolutionVariable > solution_variables, const typename DoFApplication< dim >::CellInfo &info, FuelCellShop::Layer::BaseLayer< dim > *const layer, std::map< FuelCellShop::PostProcessing::ResponsesNames, double > &respMap) const
	Routine used in order to compute the response with a modified solution (not the one stored in CellInfo object.) More...

Private Attributes
const FuelCellShop::Equation::ThermalTransportEquation < dim > *	thermal_equation
	Pointer to ThermalTransportEquation object. More...

FuelCellShop::Equation::VariableInfo	phiS
	VariableInfo structure corresponding to the `"electronic_electrical_potential"`. More...

unsigned int	factor_GDL
	Factor is 1 if electronic ohmic heating in GDL is enabled, else 0. More...

unsigned int	factor_MPL
	Factor is 1 if electronic ohmic heating in MPL is enabled, else 0. More...

unsigned int	factor_CL
	Factor is 1 if electronic ohmic heating in CL is enabled, else 0. More...

Additional Inherited Members
Protected Member Functions inherited from FuelCellShop::PostProcessing::BaseResponse< dim >
	BaseResponse (const FuelCell::SystemManagement &sm)
	Constructor. More...

virtual	~BaseResponse ()
	Destructor. More...

virtual void	declare_parameters (ParameterHandler &param) const
	Declare any necessary parameters to compute the functional. More...

Protected Attributes inherited from FuelCellShop::PostProcessing::BaseResponse< dim >
const FuelCell::SystemManagement *	system_management
	Pointer to system management. More...

Detailed Description

template<int dim>
class FuelCellShop::PostProcessing::ElectronOhmicHeatResponse< dim >

Class used to calculate the electronic ohmic heat generated in the electron conducting layers, viz., GDL, MPL and CL.

This class returns the total electronic ohmic heat produced in the layer, i.e.

$\int_{\Omega} \hat{\sigma}_{s,eff} \cdot \left( \mathbf{\nabla} \phi_s \otimes \mathbf{\nabla} \phi_s \right) d\Omega$

Applications can divide the obtained total quantity by surface area, volume etc. of the layer, in order to determine surface density, volumetric density etc.

Remarks

This class will not work if anything other than the GDL, MPL or CL layer objects are passed as argument.
This class will not work if thermal transport equation is not being solved for. FuelCellShop::Equation::ThermalTransportEquation object reference is required in the constructor, besides the FuelCell::SystemManagement object reference.
Electron transport should also be solved for, i.e. , $\phi_s$ , should be a solution variable.
Flag parameters from the ThermalTransportEquation, for instance, 'Electronic ohmic heat in GDL' is Enabled or Not, are used by this class as well. So for eg, if 'Electronic ohmic heat in GDL' is set to false, computing electronic ohmic heat in GDL will return zero.

Usage

In order to use this classes, first add them to your application as an object.

* #include "postprocessing/response_ohmic_heat.h"
*
* (...)
*
*  FuelCellShop::PostProcessing::ElectronOhmicHeatResponse<dim> electronOhmicHeat;
*

In the class constructor, construct the class passing SystemManagement and ThermalTransportEquation object. These objects are used in order to find the solution variables as appropriate, and flag parameters.

* //---------------------------------------------------------------------------
* template <int dim>
* NAME::AppPemfcNIThermal<dim>::AppPemfcNIThermal(boost::shared_ptr<FuelCell::ApplicationCore::ApplicationData> data)
* :
* OptimizationBlockMatrixApplication<dim>(data),
* system_management(this->block_info, this->cell_couplings, this->flux_couplings),
* thermal_equation(system_management)
* electronOhmicHeat(system_management, &thermal_equation)
* {}
*

Note that unlike some response classes, this class is not required to declare parameters, as it is already deriving flag parameters from ThermalTransportEquation object.

Next, the object has to be initialized once SystemManagement and ThermalTransportEquation objects have already been initialized:

* // Initialize parameters in system management:
* system_management.initialize(param);
* thermal_equation.initialize(param);
* //Initialize post-processing routines:
* electronOhmicHeat.initialize(param);
*

Finally, the object is ready for use in cell_responses in your application:

* // Compute Total Electronic Ohmic Heat generated in the CGDL
*    std::map<FuelCellShop::PostProcessing::ResponsesNames, double> respMap;
* if (CGDL->belongs_to_material(material_id)) //the material is the cathode gas diffusion layer
*        electronOhmicHeat.compute_responses(cellInfo, CGDL.get(), respMap);
*

Author: Madhur Bhaiya, 2014

Constructor & Destructor Documentation

template<int dim>

FuelCellShop::PostProcessing::ElectronOhmicHeatResponse< dim >::ElectronOhmicHeatResponse	(	const FuelCell::SystemManagement &	sm,
		const FuelCellShop::Equation::ThermalTransportEquation< dim > *	tte
	)

inline

template<int dim>

FuelCellShop::PostProcessing::ElectronOhmicHeatResponse< dim >::~ElectronOhmicHeatResponse ( )

inline

Member Function Documentation

template<int dim>

void FuelCellShop::PostProcessing::ElectronOhmicHeatResponse< dim >::compute_responses	(	const typename DoFApplication< dim >::CellInfo &	info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer,
		std::map< FuelCellShop::PostProcessing::ResponsesNames, double > &	respMap
	)		const

virtual

This member function computes the ohmic heat generated due to electron transport inside the layer.

In order to access the electronic ohmic heat at the layer use:

* respMap[FuelCellShop::PostProcessing::ResponsesNames::electron_ohmic_heat]

*

Implements FuelCellShop::PostProcessing::BaseResponse< dim >.

template<int dim>

void FuelCellShop::PostProcessing::ElectronOhmicHeatResponse< dim >::compute_responses	(	std::vector< FuelCellShop::SolutionVariable >	solution_variables,
		const typename DoFApplication< dim >::CellInfo &	info,
		FuelCellShop::Layer::BaseLayer< dim > *const	layer,
		std::map< FuelCellShop::PostProcessing::ResponsesNames, double > &	respMap
	)		const
