This class is a base class for all pure solid materials used in FCST. More...

#include <PureSolid.h>

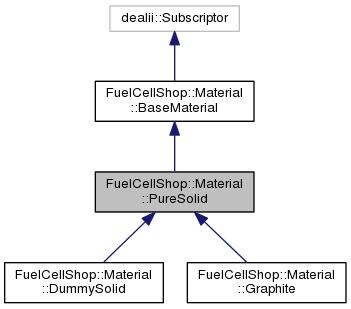

Inheritance diagram for FuelCellShop::Material::PureSolid:

Collaboration diagram for FuelCellShop::Material::PureSolid:

Public Types
Instance Delivery (Types)
typedef std::map< std::string, PureSolid * >	_mapFactory
	This object is used to store all objects of type PureSolid. More...

Public Member Functions
Service functions.
virtual double	get_density () const =0
	Obtain the density. More...

virtual double	get_electrical_conductivity (double temperature) const =0
	Obtain the electrical conductivity units (S/M) More...

virtual void	get_electrical_conductivity (std::vector< double > temperature, std::vector< double > &dst) const =0
	Obtain the electrical conductivity (S/M). More...

virtual double	get_Delectrical_conductivity_Dtemperature (double temperature) const =0
	Obtain the derivative of the electrical conductivity. More...

virtual void	get_Delectrical_conductivity_Dtemperature (std::vector< double > temperature, std::vector< double > &dst) const =0
	Obtain the derivative of the electrical conductivity. More...

virtual double	get_thermal_conductivity (double temperature) const =0
	Obtain the thermal conductivity (watts/m K) More...

virtual void	get_thermal_conductivity (std::vector< double > temperature, std::vector< double > &dst) const =0
	Obtain the thermal conductivity (watts/m K) More...

virtual double	get_Dthermal_conductivity_Dtemperature (double temperature) const =0
	Obtain the derivative of the thermal conductivity. More...

virtual void	get_Dthermal_conductivity_Dtemperature (std::vector< double > temperature, std::vector< double > &dst) const =0
	Obtain the derivative of the thermal conductivity. More...

virtual double	get_coefficient_thermal_expansion (double temperature) const =0
	Obtain the coefficient_thermal_expansion (microns/m °C) More...

virtual double	get_compressive_strength (double temperature) const =0
	Obtain the compressive_strength (unit N/mm2) More...

virtual double	get_H2_permeability (double temperature) const =0
	Obtain the H2_permeability (unit cm3cm-2s-1) More...

virtual double	get_Poissons_ratio (double temperature) const =0
	Obtain the Poissons ratio (unitless) More...

Public Member Functions inherited from FuelCellShop::Material::BaseMaterial
void	set_derivative_flags (const std::vector< VariableNames > &flags)
	Set the names of FCST solution variables with respect to which you would like to compute the derivatives of material properties. More...

const std::string &	name_material () const
	Return the name of the layer. More...

virtual void	print_material_properties () const
	This function prints out the material properties. More...

Static Public Member Functions
Instance Delivery (Private and static)
static _mapFactory *	get_mapFactory ()

Protected Member Functions
Instance Delivery (Private functions)
virtual boost::shared_ptr < FuelCellShop::Material::PureSolid >	create_replica (const std::string &name)
	This member function is used to create an object of type PureSolid Material. More...

Protected Member Functions inherited from FuelCellShop::Material::BaseMaterial
	BaseMaterial ()
	Constructor. More...

	BaseMaterial (const std::string &name)
	Constructor. More...

virtual	~BaseMaterial ()
	Destructor. More...

Protected Attributes
Accessors and info
double	density
	Density. More...

double	electrical_conductivity
	electrical_conductivity More...

double	thermal_conductivity
	thermal_conductivity More...

double	coefficient_thermal_expansion
	Coefficient of Thermal Expansion. More...

double	compressive_strength
	Compressive strength. More...

double	H2_permeability
	H2 permeability. More...

double	Poissons_ratio
	Poissons_ratio. More...

Protected Attributes inherited from FuelCellShop::Material::BaseMaterial
const std::string	name
	Name of the layer. More...

std::vector< VariableNames >	derivative_flags
	Flags for derivatives: These flags are used to request derivatives of material properties. More...

Static Protected Attributes
Instance Delivery (Public variables)
static const std::string	concrete_name
	Concrete name used for objects of this class. More...

static PureSolid const *	PROTOTYPE
	PROTOTYPE used for pointing to this class. More...

Constructors, destructor and initialization
	PureSolid ()
	Consturctor. More...

virtual	~PureSolid ()
	Destructor. More...

static void	declare_PureSolid_parameters (ParameterHandler &param)
	This routine is used to create a PureSolid with the desired properties. More...

static boost::shared_ptr < FuelCellShop::Material::PureSolid >	create_PureSolid (std::string concrete_name, ParameterHandler &param)
	This function returns a boost shared ptr of a certain material with the name of concrete_name and it initializes the PureSolid material with the desired properties. More...

	PureSolid (const std::string &name)
	Constructor. More...

virtual void	declare_parameters (ParameterHandler &param) const
	Declare parameters for a parameter file. More...

virtual void	initialize (ParameterHandler &param)
	Member function used to read in data and initialize the necessary data to compute the coefficients. More...

Detailed Description

This class is a base class for all pure solid materials used in FCST.

This class contains data provided by its children and implements the methods by means of which different properties of pure solid materials can be computed.

Warning

Do not create an object of this class. Use its children instead.

Author: Marc Secanell, Jie Zhou, 2014

Member Typedef Documentation

typedef std::map< std::string, PureSolid* > FuelCellShop::Material::PureSolid::_mapFactory

This object is used to store all objects of type PureSolid.

The mapping is from string which is basic called concrete_name to a pointer pointing to the children of PureSolid

Constructor & Destructor Documentation

FuelCellShop::Material::PureSolid::PureSolid ( )

inline

Consturctor.

virtual FuelCellShop::Material::PureSolid::~PureSolid ( )

virtual

Destructor.

FuelCellShop::Material::PureSolid::PureSolid ( const std::string & name )

protected

Constructor.

Member Function Documentation

static boost::shared_ptr<FuelCellShop::Material::PureSolid > FuelCellShop::Material::PureSolid::create_PureSolid	(	std::string	concrete_name,
		ParameterHandler &	param
	)

inlinestatic

This function returns a boost shared ptr of a certain material with the name of concrete_name and it initializes the PureSolid material with the desired properties.

References get_mapFactory(), and FcstUtilities::log.

Here is the call graph for this function:

virtual boost::shared_ptr<FuelCellShop::Material::PureSolid > FuelCellShop::Material::PureSolid::create_replica ( const std::string & name )

inlineprotectedvirtual

This member function is used to create an object of type PureSolid Material.

Warning: This class MUST be redeclared in every child.

Reimplemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

References FcstUtilities::log.

virtual void FuelCellShop::Material::PureSolid::declare_parameters ( ParameterHandler & param ) const

inlineprotectedvirtual

Declare parameters for a parameter file.

Reimplemented from FuelCellShop::Material::BaseMaterial.

Reimplemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

static void FuelCellShop::Material::PureSolid::declare_PureSolid_parameters ( ParameterHandler & param )

inlinestatic

This routine is used to create a PureSolid with the desired properties.

Parameters

concrete_name	should contain a string with the concrete_name of the PureSolid child that you would like to create.
param	should contain the ParameterHandler handler from which you would harvest any necessary data under subsection * * subsection Material Database * subsection Pure Solid * subsection concrete_name * * end * end * end *

Note: Concrete_name should be obtained form the layer class.

References get_mapFactory().

Here is the call graph for this function:

virtual double FuelCellShop::Material::PureSolid::get_coefficient_thermal_expansion ( double temperature ) const

pure virtual

Obtain the coefficient_thermal_expansion (microns/m °C)

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual double FuelCellShop::Material::PureSolid::get_compressive_strength ( double temperature ) const

pure virtual

Obtain the compressive_strength (unit N/mm2)

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual double FuelCellShop::Material::PureSolid::get_Delectrical_conductivity_Dtemperature ( double temperature ) const

pure virtual

Obtain the derivative of the electrical conductivity.

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual void FuelCellShop::Material::PureSolid::get_Delectrical_conductivity_Dtemperature	(	std::vector< double >	temperature,
		std::vector< double > &	dst
	)		const

pure virtual

Obtain the derivative of the electrical conductivity.

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual double FuelCellShop::Material::PureSolid::get_density ( ) const

pure virtual

Obtain the density.

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual double FuelCellShop::Material::PureSolid::get_Dthermal_conductivity_Dtemperature ( double temperature ) const

pure virtual

Obtain the derivative of the thermal conductivity.

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual void FuelCellShop::Material::PureSolid::get_Dthermal_conductivity_Dtemperature	(	std::vector< double >	temperature,
		std::vector< double > &	dst
	)		const

pure virtual

Obtain the derivative of the thermal conductivity.

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual double FuelCellShop::Material::PureSolid::get_electrical_conductivity ( double temperature ) const

pure virtual

Obtain the electrical conductivity units (S/M)

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual void FuelCellShop::Material::PureSolid::get_electrical_conductivity	(	std::vector< double >	temperature,
		std::vector< double > &	dst
	)		const

pure virtual

Obtain the electrical conductivity (S/M).

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual double FuelCellShop::Material::PureSolid::get_H2_permeability ( double temperature ) const

pure virtual

Obtain the H2_permeability (unit cm3*cm-2*s-1)

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

static _mapFactory* FuelCellShop::Material::PureSolid::get_mapFactory ( )

inlinestatic

Referenced by create_PureSolid(), and declare_PureSolid_parameters().

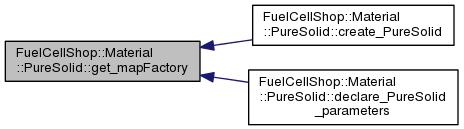

Here is the caller graph for this function:

virtual double FuelCellShop::Material::PureSolid::get_Poissons_ratio ( double temperature ) const

pure virtual

Obtain the Poissons ratio (unitless)

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual double FuelCellShop::Material::PureSolid::get_thermal_conductivity ( double temperature ) const

pure virtual

Obtain the thermal conductivity (watts/m K)

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual void FuelCellShop::Material::PureSolid::get_thermal_conductivity	(	std::vector< double >	temperature,
		std::vector< double > &	dst
	)		const

pure virtual

Obtain the thermal conductivity (watts/m K)

Implemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

virtual void FuelCellShop::Material::PureSolid::initialize ( ParameterHandler & param )

inlineprotectedvirtual

Member function used to read in data and initialize the necessary data to compute the coefficients.

Reimplemented from FuelCellShop::Material::BaseMaterial.

Reimplemented in FuelCellShop::Material::DummySolid, and FuelCellShop::Material::Graphite.

Member Data Documentation

double FuelCellShop::Material::PureSolid::coefficient_thermal_expansion

protected

Coefficient of Thermal Expansion.

double FuelCellShop::Material::PureSolid::compressive_strength

protected

Compressive strength.

const std::string FuelCellShop::Material::PureSolid::concrete_name

staticprotected

Concrete name used for objects of this class.

This name is used when setting up the subsection where the data is stored in the input file.

The data will be store under

* subsection Material Database
*   subsection Pure Solid
*     subsection concrete_name
*
*     end
*   end
* end
*

double FuelCellShop::Material::PureSolid::density

protected

Density.

double FuelCellShop::Material::PureSolid::electrical_conductivity

protected

electrical_conductivity

double FuelCellShop::Material::PureSolid::H2_permeability

protected

H2 permeability.

double FuelCellShop::Material::PureSolid::Poissons_ratio

protected

Poissons_ratio.

PureSolid const* FuelCellShop::Material::PureSolid::PROTOTYPE

staticprotected

PROTOTYPE used for pointing to this class.

This pointer is used when setting up the subsection where the data is stored in the input file.

The data will be store under

* subsection Material Database
*   subsection Pure Solid
*     subsection concrete_name
*
*     end
*   end
* end
*

double FuelCellShop::Material::PureSolid::thermal_conductivity

protected

thermal_conductivity

The documentation for this class was generated from the following file:

PureSolid.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Constructors, destructor and initialization

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
