#include <platinum.h>

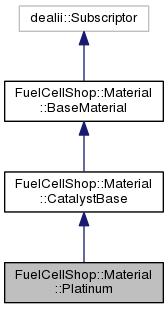

Inheritance diagram for FuelCellShop::Material::Platinum:

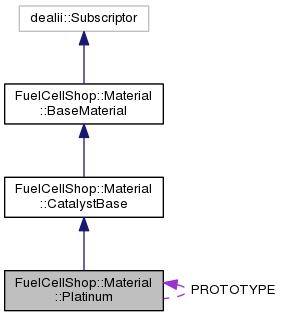

Collaboration diagram for FuelCellShop::Material::Platinum:

Public Member Functions
Constructors, destructor, and parameter initalization
	Platinum (std::string name="Platinum")
	Constructor. More...

	Platinum (const bool)
	PROTOTYE Constructor. More...

	~Platinum ()
	Destructor. More...

virtual void	declare_parameters (ParameterHandler &param) const

virtual void	initialize (ParameterHandler &param)
	Member function used to read in data and initialize the necessary data from the parameter file to compute the coefficients. More...

Kinetic Parameter Accessors
virtual void	alpha_anodic (double &) const
	Return anodic transfer coefficient for the reaction specified using set_reaction_kinetics method. More...

virtual void	alpha_cathodic (double &) const
	Return cathodic transfer coefficient for the reaction specified using set_reaction_kinetics method. More...

virtual double	exchange_current_density (const double &) const
	Compute the exchange current density [`A/cm^2`] for the reaction specified using set_reaction_kinetics method. More...

virtual double	derivative_exchange_current_density (const double &) const
	Compute the derivative of exchange current density [`A/cm^2`] w.r.t temperature [`Kelvin`] for the reaction specified using set_reaction_kinetics method. More...

virtual void	reference_concentration (const std::vector< VariableNames > &, std::map< VariableNames, double > &) const
	Compute the reference concentration for the reaction specified using set_reaction_kinetics method. More...

virtual double	voltage_cell_th (const double &) const
	Compute the theroretical cell voltage [`Volts`] as a function of temperature, for the reaction specified using set_reaction_kinetics method. More...

virtual double	dvoltage_cell_th_dT (const double &) const
	Compute the derivative of theoretical cell voltage [`Volts`] w.r.t temperature [`Kelvin`], for the reaction specified using set_reaction_kinetics method. More...

virtual void	reaction_order (const std::vector< VariableNames > &, std::map< VariableNames, double > &) const
	Compute the reaction order of the electrochemical reaction with respect to each species involved in the reaction specified using set_reaction_kinetics method. More...

virtual void	set_reaction_kinetics (const ReactionNames name)
	Member function used to specify the reaction for which the kinetic parameters are needed. More...

Public Member Functions inherited from FuelCellShop::Material::CatalystBase
virtual void	derivative_alpha_anodic (std::vector< double > &) const
	Return derivative of anodic transfer coefficient for the reaction specified using set_reaction_kinetics method with respect to the solution and design parameters specified using set_derivative_flags method. More...

virtual void	derivative_alpha_cathodic (std::vector< double > &) const
	Return derivative of cathodic transfer coefficient for the reaction specified using set_reaction_kinetics method with respect to the solution and design parameters specified using set_derivative_flags method. More...

ReactionNames	get_reaction_name () const
	Member function to return the name of the reaction set in the catalyst material class. More...

std::string	get_kinetic_parameter_method () const
	Member function to return method for kinetics parameters (ORR). More...

double	get_density () const
	Obtain the density [`gm/cm^3`]. More...

Public Member Functions inherited from FuelCellShop::Material::BaseMaterial
void	set_derivative_flags (const std::vector< VariableNames > &flags)
	Set the names of FCST solution variables with respect to which you would like to compute the derivatives of material properties. More...

const std::string &	name_material () const
	Return the name of the layer. More...

virtual void	print_material_properties () const
	This function prints out the material properties. More...

Static Public Attributes
static const std::string	concrete_name
	Name of the class. More...

Protected Member Functions
virtual bool	check_reaction_implementation (const ReactionNames name) const
	Check that whether a particular reaction is implemented in the class or not. More...

Protected Member Functions inherited from FuelCellShop::Material::CatalystBase
	CatalystBase (std::string name)
	Constructor. More...

	CatalystBase ()
	Constructor. More...

virtual	~CatalystBase ()
	Destructor. More...

virtual bool	check_reaction_implementation (const std::string) const
	Check that whether a particular reaction is implemented in the class or not. More...

Protected Member Functions inherited from FuelCellShop::Material::BaseMaterial
	BaseMaterial ()
	Constructor. More...

	BaseMaterial (const std::string &name)
	Constructor. More...

virtual	~BaseMaterial ()
	Destructor. More...

Private Member Functions
Instance Delivery (Member function to create replica)
virtual boost::shared_ptr < FuelCellShop::Material::CatalystBase >	create_replica ()
	This member function is used to create an object of type gas diffusion layer. More...

Private Attributes
Internal Data
double	alpha_a_ORR
	Anodic transfer coefficient (ORR), given in the parameter file. More...

double	alpha_c_ORR
	Cathodic transfer coefficient (ORR), given in the parameter file. More...

double	given_OCV_ORR
	Given value of open cell voltage (OCV) for ORR, given in the parameter file. More...

double	given_OCV_HOR
	Given value of open cell voltage (OCV) for HOR, given in the parameter file. More...

double	i_0_ref_ORR
	Reference exchange current density [ $\mu$ `A/cm^2`] for ORR, given in the parameter file. More...

double	c_O2_ref_ORR
	Reference oxygen concentration [`mol/cm^3`] for ORR, given in the parameter file. More...

double	c_H_ref_ORR
	Reference proton concentration [`mol/cm^3`] for ORR, given in the parameter file. More...

double	gamma_O2_ORR
	Reaction order corresponding to oxygen gas for ORR, given in the parameter file. More...

double	gamma_H_ORR
	Reaction order corresponding to protons for ORR, given in the parameter file. More...

double	alpha_a_HOR
	Anodic transfer coefficient (HOR), given in the parameter file. More...

double	alpha_c_HOR
	Cathodic transfer coefficient (HOR), given in the parameter file. More...

double	i_0_ref_HOR
	Reference exchange current density [ $\mu$ `A/cm^2`] for HOR, given in the parameter file. More...

double	c_H2_ref_HOR
	Reference hydrogen concentration [`mol/cm^3`] for HOR, given in the parameter file. More...

double	gamma_H2_HOR
	Reaction order corresponding to hydrogen gas for HOR, given in the parameter file. More...

Static Private Attributes
Instance Delivery (PROTOTYPE)
static Platinum const *	PROTOTYPE
	Create prototype for the layer. More...

Additional Inherited Members
Static Public Member Functions inherited from FuelCellShop::Material::CatalystBase
static void	declare_Catalyst_parameters (ParameterHandler &param)
	Function used to declare all the data necessary in the parameter files for all BaseKinetics children. More...

static boost::shared_ptr < FuelCellShop::Material::CatalystBase >	create_Catalyst (ParameterHandler &param, std::string catalyst_name)
	Function called in create_CatalystLayer and used to select the appropriate CatalystBase children that will be used in the layer. More...

Protected Types inherited from FuelCellShop::Material::CatalystBase
typedef std::map< std::string, FuelCellShop::Material::CatalystBase * >	_mapFactory
	This object is used to store all objects of type CatalystBase. More...

Static Protected Member Functions inherited from FuelCellShop::Material::CatalystBase
static _mapFactory *	get_mapFactory ()

Protected Attributes inherited from FuelCellShop::Material::CatalystBase
ReactionNames	name_reaction_kinetics
	Reaction name for which the class returns kinetic parameters. More...

std::string	method_kinetics_ORR
	Method for kinetics parameters (ORR), given in the parameter file. More...

double	density
	Density of catalyst particles [`gm/cm^3`]. More...

Protected Attributes inherited from FuelCellShop::Material::BaseMaterial
const std::string	name
	Name of the layer. More...

std::vector< VariableNames >	derivative_flags
	Flags for derivatives: These flags are used to request derivatives of material properties. More...

Constructor & Destructor Documentation

FuelCellShop::Material::Platinum::Platinum ( std::string name = "Platinum" )

Constructor.

FuelCellShop::Material::Platinum::Platinum ( const bool )

PROTOTYE Constructor.

Warning: For internal use only.

FuelCellShop::Material::Platinum::~Platinum ( )

Destructor.

Member Function Documentation

virtual void FuelCellShop::Material::Platinum::alpha_anodic ( double & ) const

virtual

Return anodic transfer coefficient for the reaction specified using set_reaction_kinetics method.

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual void FuelCellShop::Material::Platinum::alpha_cathodic ( double & ) const

virtual

Return cathodic transfer coefficient for the reaction specified using set_reaction_kinetics method.

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual bool FuelCellShop::Material::Platinum::check_reaction_implementation ( const ReactionNames name ) const

inlineprotectedvirtual

Check that whether a particular reaction is implemented in the class or not.

It takes a std::string as an input argument, against which the check is done. For Developers: As more reactions are implemented in the class, this method should be extended.

References HOR, and ORR.

Referenced by set_reaction_kinetics().

Here is the caller graph for this function:

virtual boost::shared_ptr<FuelCellShop::Material::CatalystBase > FuelCellShop::Material::Platinum::create_replica ( )

inlineprivatevirtual

This member function is used to create an object of type gas diffusion layer.

Warning: This class MUST be redeclared in every child.

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual void FuelCellShop::Material::Platinum::declare_parameters ( ParameterHandler & param ) const

virtual

High Priority Todo:: THIS SHOULD BE PRIVATE

Declare parameters.

The parameters for the Platinum class will usually be declared inside the layer classes.

The parameters that are declared in the input file are as follows:

* (...) <- Other sections here
*   subsection Materials
*     subsection name  <- This value is specified during the constructor. By default Platinum
*       set Density [g/cm^3] = 21.5
*       //############ Oxygen Reduction Reaction Parameters ############
*       set Anodic transfer coefficient (ORR) = 0.5
*       set Cathodic transfer coefficient (ORR) = 1.0
*       set Method for kinetics parameters (ORR) = Parthasarathy # Options are: Given|Parthasarathy|Parthasarathy_hcd|Double_trap|Neyerlin
*       set Given Open Cell Voltage (ORR) [V] = 1.229
*       set Given Open Cell Voltage (HOR) [V] = 0.0
*       set Reference exchange current density (ORR) [uA/cm2] = 2.707e-2
*       set Reference oxygen concentration (ORR) = 0.725e-5
*       set Reference proton concentration (ORR) = 1.818e-3
*       set Oxygen reaction order (ORR) = 1.0
*       set Proton reaction order (ORR) = 1.0
*       //############ Hydrogen Oxidation Reaction Parameters ############
*       set Anodic transfer coefficient (HOR) = 0.5
*       set Cathodic transfer coefficient (HOR) = 0.5
*       set Reference exchange current density (HOR) [uA/cm2] = 1e6
*       set Reference hydrogen concentration (HOR) = 5.64e-5
*       set Hydrogen reaction order (HOR) = 0.25
*     end
*   end
* (...)
*

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual double FuelCellShop::Material::Platinum::derivative_exchange_current_density ( const double & ) const

virtual

Compute the derivative of exchange current density [A/cm^2] w.r.t temperature [Kelvin] for the reaction specified using set_reaction_kinetics method.

It takes temperature [Kelvin] as an input argument by reference and returns the derivative.

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual double FuelCellShop::Material::Platinum::dvoltage_cell_th_dT ( const double & ) const

virtual

Compute the derivative of theoretical cell voltage [Volts] w.r.t temperature [Kelvin], for the reaction specified using set_reaction_kinetics method.

It takes temperature [Kelvin] as an input argument and returns the derivative.

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual double FuelCellShop::Material::Platinum::exchange_current_density ( const double & ) const

virtual

Compute the exchange current density [A/cm^2] for the reaction specified using set_reaction_kinetics method.

It takes temperature [Kelvin] as an input argument by reference and returns the exchange current density [A/cm^2].

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual void FuelCellShop::Material::Platinum::initialize ( ParameterHandler & param )

virtual

Member function used to read in data and initialize the necessary data from the parameter file to compute the coefficients.

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual void FuelCellShop::Material::Platinum::reaction_order	(	const std::vector< VariableNames > &	,
		std::map< VariableNames, double > &
	)		const

virtual

Compute the reaction order of the electrochemical reaction with respect to each species involved in the reaction specified using set_reaction_kinetics method.

The reaction might depend on more than one species, therefore this class returns a std::map of reaction orders referenced using VariableNames as Key. This map is returned by reference (second argument). It takes a vector of VariableNames as first argument, corresponding to those solution variables for whose reaction orders are required.

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual void FuelCellShop::Material::Platinum::reference_concentration	(	const std::vector< VariableNames > &	,
		std::map< VariableNames, double > &
	)		const

virtual

Compute the reference concentration for the reaction specified using set_reaction_kinetics method.

The reaction might depend on more than one species, therefore this class returns a std::map of reference concentrations referenced using VariableNames as Key. This map is returned by reference (second argument). It takes a vector of VariableNames as first argument, corresponding to those solution variables for whose reference concentrations are required.

Reimplemented from FuelCellShop::Material::CatalystBase.

virtual void FuelCellShop::Material::Platinum::set_reaction_kinetics ( const ReactionNames name )

inlinevirtual

Member function used to specify the reaction for which the kinetic parameters are needed.

Method will fail if any other std::string is passed, other than the ones mentioned below:

"ORR"
"HOR"

Reimplemented from FuelCellShop::Material::CatalystBase.

References check_reaction_implementation(), FuelCellShop::Material::BaseMaterial::name, and FuelCellShop::Material::CatalystBase::name_reaction_kinetics.

Here is the call graph for this function:

virtual double FuelCellShop::Material::Platinum::voltage_cell_th ( const double & ) const

virtual

Compute the theroretical cell voltage [Volts] as a function of temperature, for the reaction specified using set_reaction_kinetics method.

It takes temperature [Kelvin] as an input argument and returns the voltage.

Reimplemented from FuelCellShop::Material::CatalystBase.

Member Data Documentation

double FuelCellShop::Material::Platinum::alpha_a_HOR

private

Anodic transfer coefficient (HOR), given in the parameter file.

double FuelCellShop::Material::Platinum::alpha_a_ORR

private

Anodic transfer coefficient (ORR), given in the parameter file.

double FuelCellShop::Material::Platinum::alpha_c_HOR

private

Cathodic transfer coefficient (HOR), given in the parameter file.

double FuelCellShop::Material::Platinum::alpha_c_ORR

private

Cathodic transfer coefficient (ORR), given in the parameter file.

double FuelCellShop::Material::Platinum::c_H2_ref_HOR

private

Reference hydrogen concentration [mol/cm^3] for HOR, given in the parameter file.

double FuelCellShop::Material::Platinum::c_H_ref_ORR

private

Reference proton concentration [mol/cm^3] for ORR, given in the parameter file.

double FuelCellShop::Material::Platinum::c_O2_ref_ORR

private

Reference oxygen concentration [mol/cm^3] for ORR, given in the parameter file.

const std::string FuelCellShop::Material::Platinum::concrete_name

static

Name of the class.

This name is used to select the layer.

double FuelCellShop::Material::Platinum::gamma_H2_HOR

private

Reaction order corresponding to hydrogen gas for HOR, given in the parameter file.

double FuelCellShop::Material::Platinum::gamma_H_ORR

private

Reaction order corresponding to protons for ORR, given in the parameter file.

double FuelCellShop::Material::Platinum::gamma_O2_ORR

private

Reaction order corresponding to oxygen gas for ORR, given in the parameter file.

double FuelCellShop::Material::Platinum::given_OCV_HOR

private

Given value of open cell voltage (OCV) for HOR, given in the parameter file.

double FuelCellShop::Material::Platinum::given_OCV_ORR

private

Given value of open cell voltage (OCV) for ORR, given in the parameter file.

double FuelCellShop::Material::Platinum::i_0_ref_HOR

private

Reference exchange current density [ $\mu$ A/cm^2] for HOR, given in the parameter file.

double FuelCellShop::Material::Platinum::i_0_ref_ORR

private

Reference exchange current density [ $\mu$ A/cm^2] for ORR, given in the parameter file.

Platinum const* FuelCellShop::Material::Platinum::PROTOTYPE

staticprivate

Create prototype for the layer.

The documentation for this class was generated from the following file:

platinum.h

Public Member Functions

Static Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
