Base class for developing bipolar plate materials. More...

#include <material_plate_base.h>

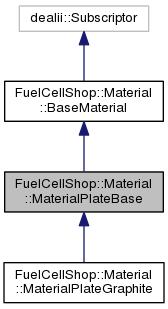

Inheritance diagram for FuelCellShop::Material::MaterialPlateBase:

Collaboration diagram for FuelCellShop::Material::MaterialPlateBase:

Public Member Functions
	MaterialPlateBase (std::string name)
	Constructor. More...

	~MaterialPlateBase ()
	Destructor. More...

void	declare_parameters (ParameterHandler &param) const
	Declare parameters. More...

void	initialize (ParameterHandler &param)
	Member function used to read in data and initialize the necessary data to compute the coefficients. More...

virtual double	get_electron_conductivity () const
	Member function to compute the electron conductivity (Isotropic properties). More...

virtual void	get_electron_conductivity_derivative (double &, std::vector< double > &) const
	Member function to compute the derivatives of the electron conductivity (Isotropic properties) with respect to the solution. More...

virtual double	get_thermal_conductivity () const
	Member function to compute the thermal conductivity (Isotropic properties). More...

virtual void	get_thermal_conductivity_derivative (double &, std::vector< double > &) const
	Member function to compute the derivatives of the thermal conductivity (Isotropic properties) with respect to the solution. More...

virtual double	get_youngs_modulus () const
	Member function to compute the Young's modulus (Isotropic properties). More...

virtual void	get_youngs_modulus_derivative (double &, std::vector< double > &) const
	Member function to compute the derivatives of the Young's modulus (Isotropic properties) with respect to the solution. More...

virtual double	get_poissons_ratio () const
	Member function to compute the Poisson's ratio (Isotropic properties). More...

virtual void	get_poissons_modulus_derivative (double &, std::vector< double > &) const
	Member function to compute the derivatives of the Poisson's ratio (Isotropic properties) with respect to the solution. More...

virtual double	get_expansion_coefficient () const
	Member function to compute the expansion coefficient (Isotropic properties). More...

virtual void	get_expansion_coefficient_derivative (double &E, std::vector< double > &dE) const
	Member function to compute the derivatives of the expansion coefficient (Isotropic properties) with respect to the solution. More...

Public Member Functions inherited from FuelCellShop::Material::BaseMaterial
void	set_derivative_flags (const std::vector< VariableNames > &flags)
	Set the names of FCST solution variables with respect to which you would like to compute the derivatives of material properties. More...

const std::string &	name_material () const
	Return the name of the layer. More...

virtual void	print_material_properties () const
	This function prints out the material properties. More...

Protected Attributes
double	electron_conductivity
	Variable storing electron conductivity. More...

std::vector< double >	electron_conductivity_derivative
	Variable storing electron conductivity derivatives. More...

double	thermal_conductivity
	Variable storing thermal conductivity. More...

std::vector< double >	thermal_conductivity_derivative
	Variable storing thermal conductivity derivatives. More...

double	youngs_modulus
	Variable storing Youngs modulus. More...

std::vector< double >	youngs_modulus_derivative
	Variable storing Youngs modulus. More...

double	poissons_ratio
	Variable storing Poisson ratio. More...

std::vector< double >	poissons_ratio_derivative
	Variable storing Poisson modulus. More...

double	expansion_coefficient
	Variable storing expansion coefficient ratio. More...

std::vector< double >	expansion_coefficient_derivative
	Variable storing expansion coefficient modulus. More...

Protected Attributes inherited from FuelCellShop::Material::BaseMaterial
const std::string	name
	Name of the layer. More...

std::vector< VariableNames >	derivative_flags
	Flags for derivatives: These flags are used to request derivatives of material properties. More...

Additional Inherited Members
Protected Member Functions inherited from FuelCellShop::Material::BaseMaterial
	BaseMaterial ()
	Constructor. More...

	BaseMaterial (const std::string &name)
	Constructor. More...

virtual	~BaseMaterial ()
	Destructor. More...

Detailed Description

Base class for developing bipolar plate materials.

Do not implement a material in this class, this classs is only for setting up the interface. This class returns:

thermal conductivity tensor and derivatives
electron (electrical) conductivity tensort and derivatives
Young's modulus tensor and derivatives
Poisson's ratio
expansion coefficient
surface properties (contact angle)

Medium Priority Todo:: Implement a liquid gas so that it can be passed to the member function that computes contact angles

Constructor & Destructor Documentation

FuelCellShop::Material::MaterialPlateBase::MaterialPlateBase ( std::string name )

inline

Constructor.

FuelCellShop::Material::MaterialPlateBase::~MaterialPlateBase ( )

inline

Destructor.

Member Function Documentation

void FuelCellShop::Material::MaterialPlateBase::declare_parameters ( ParameterHandler & param ) const

inlinevirtual

Declare parameters.

Reimplemented from FuelCellShop::Material::BaseMaterial.

Reimplemented in FuelCellShop::Material::MaterialPlateGraphite.

References FuelCellShop::Material::BaseMaterial::declare_parameters().

Here is the call graph for this function:

virtual double FuelCellShop::Material::MaterialPlateBase::get_electron_conductivity ( ) const

inlinevirtual

Member function to compute the electron conductivity (Isotropic properties).

If the electron conductivity depends on the solution, then the solution is set in member function set_solution(std::vector< std::vector< double > * >, std::vector< std::string >)

Reimplemented in FuelCellShop::Material::MaterialPlateGraphite.

References FcstUtilities::log.

virtual void FuelCellShop::Material::MaterialPlateBase::get_electron_conductivity_derivative	(	double &	,
		std::vector< double > &
	)		const

inlinevirtual

Member function to compute the derivatives of the electron conductivity (Isotropic properties) with respect to the solution.

The derivative is computed with respect to the variables that you have indicted using the member function set_derivative_flags(std::vector< std::string > &flags).

Reimplemented in FuelCellShop::Material::MaterialPlateGraphite.

References FcstUtilities::log.

virtual double FuelCellShop::Material::MaterialPlateBase::get_expansion_coefficient ( ) const

inlinevirtual

Member function to compute the expansion coefficient (Isotropic properties).

If the thermal conductivity depends on the solution, then the solution is set in member function set_solution(std::vector< std::vector< double > * >, std::vector< std::string >)

References FcstUtilities::log.

virtual void FuelCellShop::Material::MaterialPlateBase::get_expansion_coefficient_derivative	(	double &	E,
		std::vector< double > &	dE
	)		const

inlinevirtual

Member function to compute the derivatives of the expansion coefficient (Isotropic properties) with respect to the solution.

The derivative is computed with respect to the variables that you have indicted using the member function set_derivative_flags(std::vector< std::string > &flags).

References FcstUtilities::log.

virtual void FuelCellShop::Material::MaterialPlateBase::get_poissons_modulus_derivative	(	double &	,
		std::vector< double > &
	)		const

inlinevirtual

Member function to compute the derivatives of the Poisson's ratio (Isotropic properties) with respect to the solution.

The derivative is computed with respect to the variables that you have indicted using the member function set_derivative_flags(std::vector< std::string > &flags).

References FcstUtilities::log.

virtual double FuelCellShop::Material::MaterialPlateBase::get_poissons_ratio ( ) const

inlinevirtual

Member function to compute the Poisson's ratio (Isotropic properties).

If the thermal conductivity depends on the solution, then the solution is set in member function set_solution(std::vector< std::vector< double > * >, std::vector< std::string >)

References FcstUtilities::log.

virtual double FuelCellShop::Material::MaterialPlateBase::get_thermal_conductivity ( ) const

inlinevirtual

Member function to compute the thermal conductivity (Isotropic properties).

If the thermal conductivity depends on the solution, then the solution is set in member function set_solution(std::vector< std::vector< double > * >, std::vector< std::string >)

References FcstUtilities::log.

virtual void FuelCellShop::Material::MaterialPlateBase::get_thermal_conductivity_derivative	(	double &	,
		std::vector< double > &
	)		const

inlinevirtual

Member function to compute the derivatives of the thermal conductivity (Isotropic properties) with respect to the solution.

The derivative is computed with respect to the variables that you have indicted using the member function set_derivative_flags(std::vector< std::string > &flags).

References FcstUtilities::log.

virtual double FuelCellShop::Material::MaterialPlateBase::get_youngs_modulus ( ) const

inlinevirtual

Member function to compute the Young's modulus (Isotropic properties).

If the thermal conductivity depends on the solution, then the solution is set in member function set_solution(std::vector< std::vector< double > * >, std::vector< std::string >)

References FcstUtilities::log.

virtual void FuelCellShop::Material::MaterialPlateBase::get_youngs_modulus_derivative	(	double &	,
		std::vector< double > &
	)		const

inlinevirtual

Member function to compute the derivatives of the Young's modulus (Isotropic properties) with respect to the solution.

The derivative is computed with respect to the variables that you have indicted using the member function set_derivative_flags(std::vector< std::string > &flags).

References FcstUtilities::log.

void FuelCellShop::Material::MaterialPlateBase::initialize ( ParameterHandler & param )

inlinevirtual

Member function used to read in data and initialize the necessary data to compute the coefficients.

Reimplemented from FuelCellShop::Material::BaseMaterial.

Reimplemented in FuelCellShop::Material::MaterialPlateGraphite.

References FuelCellShop::Material::BaseMaterial::initialize().

Here is the call graph for this function:

Member Data Documentation

double FuelCellShop::Material::MaterialPlateBase::electron_conductivity

protected

Variable storing electron conductivity.

std::vector<double> FuelCellShop::Material::MaterialPlateBase::electron_conductivity_derivative

protected

Variable storing electron conductivity derivatives.

double FuelCellShop::Material::MaterialPlateBase::expansion_coefficient

protected

Variable storing expansion coefficient ratio.

std::vector<double> FuelCellShop::Material::MaterialPlateBase::expansion_coefficient_derivative

protected

Variable storing expansion coefficient modulus.

double FuelCellShop::Material::MaterialPlateBase::poissons_ratio

protected

Variable storing Poisson ratio.

std::vector<double> FuelCellShop::Material::MaterialPlateBase::poissons_ratio_derivative

protected

Variable storing Poisson modulus.

double FuelCellShop::Material::MaterialPlateBase::thermal_conductivity

protected

Variable storing thermal conductivity.

std::vector<double> FuelCellShop::Material::MaterialPlateBase::thermal_conductivity_derivative

protected

Variable storing thermal conductivity derivatives.

double FuelCellShop::Material::MaterialPlateBase::youngs_modulus

protected

Variable storing Youngs modulus.

std::vector<double> FuelCellShop::Material::MaterialPlateBase::youngs_modulus_derivative

protected

Variable storing Youngs modulus.

The documentation for this class was generated from the following file:

material_plate_base.h
