FuelCellShop::Material::CarbonFiber Class Reference

#include <carbon_fiber.h>

Inheritance diagram for FuelCellShop::Material::CarbonFiber:

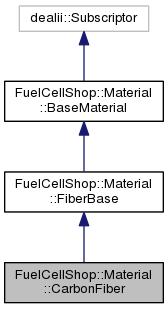

Collaboration diagram for FuelCellShop::Material::CarbonFiber:

Public Member Functions
	CarbonFiber (std::string name="Carbon Fiber")
	Constructor The constructor initialize parameters using the default values. More...
	~CarbonFiber ()
	Destructor. More...
void	declare_parameters (ParameterHandler &param) const
	Declare parameters. More...
void	initialize (ParameterHandler &param)
	Initialize. More...
double	get_electrical_conductivity () const
	Obtain the electrical conductivity. More...
double	get_electrical_conductivity (double) const
	Obtain the electrical conductivity. More...
double	get_derivative_electrical_conductivity () const
double	get_thermal_conductivity () const
	Obtain the thermal conductivity. More...
double	get_derivative_thermal_conductivity () const
double	get_density () const
	Obtain the density. More...
Public Member Functions inherited from FuelCellShop::Material::FiberBase
	FiberBase (std::string name)
	Constructor The constructor initialize parameters using the default values. More...
	~FiberBase ()
	Destructor. More...
Public Member Functions inherited from FuelCellShop::Material::BaseMaterial
void	set_derivative_flags (const std::vector< VariableNames > &flags)
	Set the names of FCST solution variables with respect to which you would like to compute the derivatives of material properties. More...
const std::string &	name_material () const
	Return the name of the layer. More...
virtual void	print_material_properties () const
	This function prints out the material properties. More...

Additional Inherited Members
Protected Member Functions inherited from FuelCellShop::Material::BaseMaterial
	BaseMaterial ()
	Constructor. More...
	BaseMaterial (const std::string &name)
	Constructor. More...
virtual	~BaseMaterial ()
	Destructor. More...
Protected Attributes inherited from FuelCellShop::Material::FiberBase
double	electrical_conductivity
	Electrical conductivity of carbon fibers extrapolated to 100% solid phase. More...
double	thermal_conductivity
	Thermal conductivity of carbon fibers extrapolated to 100% solid phase. More...
double	density
	Density of carbon fibers. More...
Protected Attributes inherited from FuelCellShop::Material::BaseMaterial
const std::string	name
	Name of the layer. More...
std::vector< VariableNames >	derivative_flags
	Flags for derivatives: These flags are used to request derivatives of material properties. More...

Constructor & Destructor Documentation

FuelCellShop::Material::CarbonFiber::CarbonFiber

(

std::string

name = "Carbon Fiber"

)

Constructor The constructor initialize parameters using the default values.

This is so that if I do not want to call declare_parameters and initialize, I can still use the routine with the hard coded values.

FuelCellShop::Material::CarbonFiber::~CarbonFiber

(

)

Destructor.

Member Function Documentation

void FuelCellShop::Material::CarbonFiber::declare_parameters ( ParameterHandler &  param ) const

virtual

Declare parameters.

Reimplemented from FuelCellShop::Material::FiberBase.

double FuelCellShop::Material::CarbonFiber::get_density ( ) const

inlinevirtual

Obtain the density.

Reimplemented from FuelCellShop::Material::FiberBase.

References FuelCellShop::Material::FiberBase::density.

double FuelCellShop::Material::CarbonFiber::get_derivative_electrical_conductivity ( ) const

inlinevirtual

Reimplemented from FuelCellShop::Material::FiberBase.

References FcstUtilities::log.

double FuelCellShop::Material::CarbonFiber::get_derivative_thermal_conductivity ( ) const

inlinevirtual

Reimplemented from FuelCellShop::Material::FiberBase.

References FcstUtilities::log.

double FuelCellShop::Material::CarbonFiber::get_electrical_conductivity ( ) const

inlinevirtual

Obtain the electrical conductivity.

Reimplemented from FuelCellShop::Material::FiberBase.

References FuelCellShop::Material::FiberBase::electrical_conductivity.

double FuelCellShop::Material::CarbonFiber::get_electrical_conductivity ( double  ) const

virtual

Obtain the electrical conductivity.

Reimplemented from FuelCellShop::Material::FiberBase.

double FuelCellShop::Material::CarbonFiber::get_thermal_conductivity ( ) const

inlinevirtual

Obtain the thermal conductivity.

Reimplemented from FuelCellShop::Material::FiberBase.

References FuelCellShop::Material::FiberBase::thermal_conductivity.

void FuelCellShop::Material::CarbonFiber::initialize ( ParameterHandler &  param )

virtual

Initialize.

Reimplemented from FuelCellShop::Material::FiberBase.

---

The documentation for this class was generated from the following file:

• carbon_fiber.h
