OpenFCST: The open-source Fuel Cell Simulation Toolbox
|

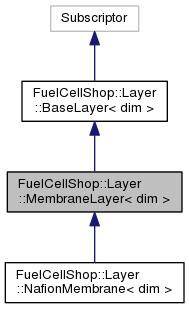

Virtual class used to provide the interface for all MembraneLayer children. More...
#include <membrane_layer.h>
Public Member Functions | |
Accessors and Initialization | |
| const std::type_info & | get_base_type () const |
| This member function returns a type_info object with the name of the base layer type the inherited class belongs to, i.e. More... | |
| virtual void | set_derivative_flags (const std::vector< VariableNames > &flags) |
| Method used to set the variables for which you would like to compute the derivatives in the membrane layer. More... | |
| virtual void | set_constant_solution (const double &value, const VariableNames &name) |
| Set those solution variables which are constant in the particular application. More... | |
| FuelCellShop::Material::PolymerElectrolyteBase * | get_electrolyte () const |
| Method to provide access to the pointer to electrolyte material in the membrane layer. More... | |
Effective property calculators | |
| virtual void | effective_proton_conductivity (double &) const |
| Compute the constant effective proton conductivity of the membrane. More... | |
| virtual void | effective_proton_conductivity (std::vector< double > &) const |
| Compute the effective proton conductivity of the membrane at every quadrature point, as a function of solution variables. More... | |
| virtual void | derivative_effective_proton_conductivity (std::map< VariableNames, std::vector< double > > &) const |
| Compute the derivative of effective proton conductivity of the membrane with respect to the flags set by set_derivative_flags, at every quadrature point. More... | |
| virtual void | effective_water_diffusivity (double &) const |
| Compute the constant effective water diffusivity of the membrane. More... | |
| virtual void | effective_water_diffusivity (std::vector< double > &) const |
| Compute the effective water diffusivity of the membrane at every quadrature point, as a function of solution variables. More... | |
| virtual void | derivative_effective_water_diffusivity (std::map< VariableNames, std::vector< double > > &) const |
| Compute the derivative of effective water diffusivity of the membrane with respect to the flags set by set_derivative_flags, at every quadrature point. More... | |
| virtual void | effective_oxygen_diffusivity (double &) const |
| Compute the constant effective oxygen diffusivity of the membrane. More... | |
| virtual void | effective_oxygen_diffusivity (std::vector< double > &) const |
| Compute the effective oxygen diffusivity of the membrane at every quadrature point, as a function of solution variables. More... | |
| virtual void | derivative_effective_oxygen_diffusivity (std::map< VariableNames, std::vector< double > > &) const |
| Compute the derivative of effective oxygen diffusivity of the membrane with respect to the flags set by set_derivative_flags, at every quadrature point. More... | |
| virtual void | effective_thermal_conductivity (double &) const |
| Compute the constant effective thermal conductivity of membrane layer. More... | |
| virtual void | effective_thermal_conductivity (std::vector< double > &) const |
| Compute the effective thermal conductivity of membrane layer for isotropic case at all quadrature points. More... | |
| virtual void | effective_thermal_conductivity (std::vector< Tensor< 2, dim > > &) const |
| Compute the effective thermal conductivity of membrane layer for anisotropic case at all quadrature points. More... | |
| virtual void | derivative_effective_thermal_conductivity (std::vector< std::vector< double > > &) const |
| Compute the derivative of the effective thermal conductivity in the membrane layer for isotropic case at all quadrature points. More... | |
| virtual void | derivative_effective_thermal_conductivity (std::vector< std::vector< Tensor< 2, dim > > > &) const |
| Compute the derivative of the effective thermal conductivity in the membrane layer for anisotropic case at all quadrature points. More... | |
| virtual void | effective_thermoosmotic_diffusivity (std::vector< double > &) const |
| Compute the effective thermo-osmotic diffusivity of lambda (sorbed water), at all quadrature points in the membrane layer. More... | |
| virtual void | derivative_effective_thermoosmotic_diffusivity (std::map< VariableNames, std::vector< double > > &) const |
| Compute the derivative of the effective thermo-osmotic diffusivity of lambda (sorbed water) in the membrane layer with respect to either the solution or design parameters. More... | |
 Public Member Functions inherited from FuelCellShop::Layer::BaseLayer< dim > | |
| void | set_position (const std::vector< Point< dim > > &p) |
| Member function used by some applications such as dummyGDL in order to know which value to return. More... | |
| virtual void | set_local_material_id (const unsigned int &id) |
| Function for setting local material id, for unit testing purposes. More... | |
| void | unset_local_material_id () |
| Function for unsetting local material id, so that it isn't incorrectly used later Once the key is "unset" to some invalid value, an error will be thrown if the key is requested again without being set. More... | |
| virtual void | set_solution (const std::vector< SolutionVariable > &) |
| If the effective properties in the layer depend on the solution, the solution for a given cell should be passed to the class using this member function. More... | |
| bool | belongs_to_material (const unsigned int material_id) |
| Check if a given cell belongs to the catalyst layer and assign. More... | |
| const std::string & | name_layer () const |
| Return the name of the layer. More... | |
| virtual void | print_layer_properties () const |
| This member function is a virtual class that can be used to output to screen information from the layer. More... | |
| virtual bool | test_layer () |
| This virtual class should be used for any derived class to be able to test the functionality of the class. More... | |
| std::vector< unsigned int > | get_material_ids () |
| Return the local material id of the layer. More... | |
| unsigned int | local_material_id () const |
| Return the local material id of the layer, performs a check. More... | |
Protected Member Functions | |
Constructors, destructor, and initalization | |
| MembraneLayer () | |
| Replica Constructors. More... | |
| MembraneLayer (std::string name) | |
| Constructor. More... | |
| ~MembraneLayer () | |
| Destructor. More... | |
| void | declare_parameters (ParameterHandler ¶m) const |
| Declare all necessary parameters in order to compute the coefficients. More... | |
| virtual void | declare_parameters (const std::string &name, ParameterHandler ¶m) const |
| Declare parameters for a parameter file. More... | |
| void | initialize (ParameterHandler ¶m) |
| Member function used to read in data and initialize the necessary data to compute the coefficients. More... | |
| Protected Member Functions inherited from FuelCellShop::Layer::BaseLayer< dim > | |
| BaseLayer () | |
| Constructor. More... | |
| BaseLayer (const std::string &name) | |
| Constructor. More... | |
| virtual | ~BaseLayer () |
| Destructor. More... | |
| virtual void | set_parameters (const std::string &object_name, const std::vector< std::string > &name_dvar, const std::vector< double > &value_dvar, ParameterHandler ¶m) |
| Member function used to change the values in the parameter file for a given list of parameters. More... | |
| virtual void | set_parameters (const std::vector< std::string > &name_dvar, const std::vector< double > &value_dvar, ParameterHandler ¶m) |
| Set parameters in parameter file. More... | |
Protected Attributes | |
Internal variables | |
| std::string | electrolyte_type |
| Type of membrane. More... | |
| boost::shared_ptr < FuelCellShop::Material::PolymerElectrolyteBase > | electrolyte |
| Pointer to the electrolyte object used in the constructor, and it is used to calculate the effective properties of the membrane layer. More... | |
| Protected Attributes inherited from FuelCellShop::Layer::BaseLayer< dim > | |
| const std::string | name |
| Name of the layer. More... | |
| std::vector< unsigned int > | material_ids |
| List of material IDs that belong to the layer. More... | |
| std::vector< Point< dim > > | point |
| Coordinates of the point where we would like to compute the effective properties. More... | |
| std::vector< VariableNames > | derivative_flags |
| Flags for derivatives: These flags are used to request derivatives. More... | |
| std::map< VariableNames, double > | constant_solutions |
| Map storing values of solution variables constant in a particular application. More... | |
Instance Delivery | |
| typedef std::map< std::string, MembraneLayer< dim > * > | _mapFactory |
| This object is used to store all objects of type GasDiffusionLayer. More... | |
| static void | declare_MembraneLayer_parameters (std::string pem_section_name, ParameterHandler ¶m) |
| Function used to declare all the data necessary in the parameter files for all MembraneLayer children. More... | |
| static boost::shared_ptr < FuelCellShop::Layer::MembraneLayer < dim > > | create_MembraneLayer (std::string pem_section_name, ParameterHandler ¶m) |
| Function used to select the appropriate MembraneLayer type as specified in the ParameterHandler under line. More... | |
| virtual boost::shared_ptr < FuelCellShop::Layer::MembraneLayer < dim > > | create_replica (std::string &name) |
| This member function is used to create an object of type gas diffusion layer. More... | |
| static _mapFactory * | get_mapFactory () |
Virtual class used to provide the interface for all MembraneLayer children.
No object of type MembraneLayer should ever be created, instead this layer is used to initialize pointers of type MembraneLayer. The class has a database of children such that it will declare all necessary parameters for all children in the input file, read the input file, create the appripriate children and return a pointer to MembraneLayer with the children selected.
All public functions are virtual but the static functions used to declare parameters and to initialize a pointer of MembraneLayer, i.e. declare_all_MembraneLayer_parameters, set_all_MembraneLayer_parameters and create_MembraneLayer.
In order to create a membrane layer within an application, the following steps need to be taken.
First, in the application .h file, create a pointer to a MembraneLayer object, i.e.
This pointer object will be available anywhere inside the application. Because we do not want to worry about deleting the pointer afterwards, we use a Boost pointer which has its own memory management algorithms. See the Boost website for more information
Once the pointer is available, we need to do three things in the application
The object is ready for use now.
Here is a code example from ??.cc:
|
protected |
This object is used to store all objects of type GasDiffusionLayer.
This information in then used in layer_generator.h in order to create the correct object depending on the specified concrete type of layer selected such as DummyGDL or SGL24BA.
|
protected |
Replica Constructors.
Constructor used only to create a prototype. Do not use in general since this will not include the name of the section in the parameter file you need.
|
protected |
|
protected |
Destructor.
|
inlinestatic |

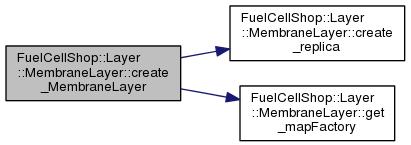

Function used to select the appropriate MembraneLayer type as specified in the ParameterHandler under line.
current options are [ ]
The class will read the appropriate section in the parameter file, i.e. the one with name
| pem_section_name,create | an object of the desired type and return it. |
References FuelCellShop::Layer::MembraneLayer< dim >::create_replica(), FuelCellShop::Layer::MembraneLayer< dim >::get_mapFactory(), and FcstUtilities::log.
|
inlineprotectedvirtual |
This member function is used to create an object of type gas diffusion layer.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
References FcstUtilities::log.
Referenced by FuelCellShop::Layer::MembraneLayer< dim >::create_MembraneLayer().
|
inlinestatic |
Function used to declare all the data necessary in the parameter files for all MembraneLayer children.
This member function should be used instead of declare_parameters() when we want to use a MembraneLayer pointer that selects the type of PEM to run at runtime.
| pem_section_name | Name of the section that will encapuslate all the information about the PEM |
| param | ParameterHandler object used to store all information about the simulation. Used to read the parameter file. |
The parameter file would look as follows:

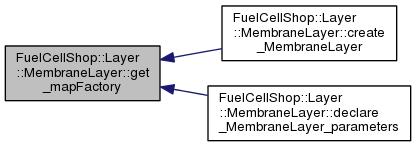

References FuelCellShop::Layer::MembraneLayer< dim >::get_mapFactory().
|
inlineprotectedvirtual |
Declare all necessary parameters in order to compute the coefficients.
Reimplemented from FuelCellShop::Layer::BaseLayer< dim >.
References FuelCellShop::Layer::BaseLayer< dim >::name.
|
protectedvirtual |
Declare parameters for a parameter file.
Reimplemented from FuelCellShop::Layer::BaseLayer< dim >.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the derivative of effective oxygen diffusivity of the membrane with respect to the flags set by set_derivative_flags, at every quadrature point.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the derivative of effective proton conductivity of the membrane with respect to the flags set by set_derivative_flags, at every quadrature point.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the derivative of the effective thermal conductivity in the membrane layer for isotropic case at all quadrature points.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the derivative of the effective thermal conductivity in the membrane layer for anisotropic case at all quadrature points.
|
virtual |
Compute the derivative of the effective thermo-osmotic diffusivity of lambda (sorbed water) in the membrane layer with respect to either the solution or design parameters.
The parameters with respect to which the derivatives are computed are setup in FuelCellShop::Layer::set_derivative_flags()
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the derivative of effective water diffusivity of the membrane with respect to the flags set by set_derivative_flags, at every quadrature point.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the constant effective oxygen diffusivity of the membrane.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the effective oxygen diffusivity of the membrane at every quadrature point, as a function of solution variables.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the constant effective proton conductivity of the membrane.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the effective proton conductivity of the membrane at every quadrature point, as a function of solution variables.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the constant effective thermal conductivity of membrane layer.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the effective thermal conductivity of membrane layer for isotropic case at all quadrature points.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the effective thermal conductivity of membrane layer for anisotropic case at all quadrature points.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the effective thermo-osmotic diffusivity of lambda (sorbed water), at all quadrature points in the membrane layer.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the constant effective water diffusivity of the membrane.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
virtual |
Compute the effective water diffusivity of the membrane at every quadrature point, as a function of solution variables.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
inlinevirtual |
This member function returns a type_info object with the name of the base layer type the inherited class belongs to, i.e.
Note that this is necessary if we want to find out not the name of the actual class which can be obtain using
but the name of the parent class.
Reimplemented from FuelCellShop::Layer::BaseLayer< dim >.
|
inline |
Method to provide access to the pointer to electrolyte material in the membrane layer.
References FuelCellShop::Layer::MembraneLayer< dim >::electrolyte.
|
inlinestaticprotected |
Referenced by FuelCellShop::Layer::MembraneLayer< dim >::create_MembraneLayer(), and FuelCellShop::Layer::MembraneLayer< dim >::declare_MembraneLayer_parameters().
|
protectedvirtual |
Member function used to read in data and initialize the necessary data to compute the coefficients.
Reimplemented from FuelCellShop::Layer::BaseLayer< dim >.
Reimplemented in FuelCellShop::Layer::NafionMembrane< dim >.
|
inlinevirtual |
Set those solution variables which are constant in the particular application.
If the effective properties in the layer depend on other variables that are usually part of the solution vector but are assumed to be constant in this simulation, the const solution value should be passed to the class using this member function. This method should be called in the initialization section of the application. This function takes value to be set as the first argument and the VariableNames as second argument. For instance, it's required to store constant temperature value for an isothermal application, in that case this method can be used. e.g., in order to set temperature as 353.0 [Kelvin] in the layer, you can use the following code:
If temperature_of_REV is passed using this method, it also sets the temperature [Kelvin] values in the electrolyte object.
Reimplemented from FuelCellShop::Layer::BaseLayer< dim >.
References FuelCellShop::Layer::MembraneLayer< dim >::electrolyte, FuelCellShop::Layer::BaseLayer< dim >::set_constant_solution(), and temperature_of_REV.
|
inlinevirtual |
Method used to set the variables for which you would like to compute the derivatives in the membrane layer.
It takes vector of VariableNames as an input argument. It also sets the derivative flags in the electrolyte object of the catalyst layer.
Reimplemented from FuelCellShop::Layer::BaseLayer< dim >.
References FuelCellShop::Layer::BaseLayer< dim >::derivative_flags, and FuelCellShop::Layer::MembraneLayer< dim >::electrolyte.
|
protected |
Pointer to the electrolyte object used in the constructor, and it is used to calculate the effective properties of the membrane layer.
Referenced by FuelCellShop::Layer::MembraneLayer< dim >::get_electrolyte(), FuelCellShop::Layer::MembraneLayer< dim >::set_constant_solution(), and FuelCellShop::Layer::MembraneLayer< dim >::set_derivative_flags().
|
protected |
Type of membrane.
1.8.5
