Class that solves an ionomer-filled agglomerate problem in 1D. More...

#include <agglomerate_ionomer_1D.h>

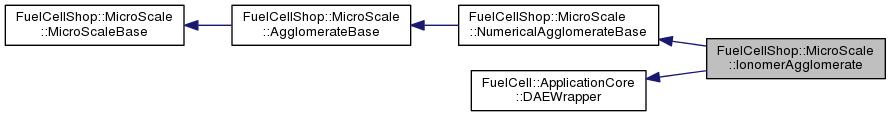

Inheritance diagram for FuelCellShop::MicroScale::IonomerAgglomerate:

Collaboration diagram for FuelCellShop::MicroScale::IonomerAgglomerate:

Public Member Functions
virtual SolutionMap	compute_current ()
	Main function of the class used to compute the current over the whole agglomerate at the local operating conditions. More...

virtual std::string	get_name ()
	Return name of class instance, i.e. More...

virtual double	aux_volume_fraction ()
	MicroScale object may have extra contribution to volume of layer, e.g. More...

Public Member Functions inherited from FuelCellShop::MicroScale::AgglomerateBase
virtual	~AgglomerateBase ()

virtual void	print_properties ()
	Print out key agglomerate information (name, radius, film thickness, porosity). More...

virtual std::vector< double >	compute_derivative_current ()
	Function to compute the derivative of the current density at the local operating conditions. More...

virtual bool	has_derivatives ()
	Returns true if the class instance can calculate current density derivatives. More...

virtual void	set_solution (const std::map< VariableNames, SolutionVariable > &, const VariableNames &, const int &)
	Function for setting the solution map(reactant concentration, phi_s, phi_m, etc.). More...

Public Member Functions inherited from FuelCellShop::MicroScale::MicroScaleBase
virtual	~MicroScaleBase ()
	Destructor. More...

Public Member Functions inherited from FuelCell::ApplicationCore::DAEWrapper
	DAEWrapper ()
	Constructor. More...

	~DAEWrapper ()
	Destructor. More...

double	integrate (double lb, double ub, std::vector< double > &W, std::vector< double > &F)
	Member function that integrates a solution between a lower and upper bound. More...

void	get_quadrature_points (double lb, double ub, std::vector< double > &X, std::vector< double > &W, FuelCell::ApplicationCore::DAESolver *prob)
	Function that obtains the gaussian quadrature points and weights. More...

void	verbosity (int i)
	Set the verbosity variable (controls output to screen) More...

void	DAE_Error (int flag)
	Indicates error in the solve function. More...

void	clear_memory ()

Static Public Attributes
static const std::string	concrete_name

Protected Member Functions
void	setup_DAE_solver ()
	Setup the variables in the problem required by the DAE Solver. More...

int	cont_tolerance (double start_tol, double end_tol)
	Function which implements a continuation based on the tolerance. More...

virtual double	get_film_thickness ()

virtual double	get_radius ()

virtual void	set_structure ()
	Set the composition and structure of the agglomerate. More...

	IonomerAgglomerate (int verbose=1)
	Constructors. More...

	IonomerAgglomerate (std::string name)

virtual void	declare_parameters (ParameterHandler &param) const

virtual void	initialize (ParameterHandler &param)

Protected Member Functions inherited from FuelCellShop::MicroScale::NumericalAgglomerateBase
void	setAV (double newAV)

	NumericalAgglomerateBase ()
	Constructor. More...

	~NumericalAgglomerateBase ()
	Destructor. More...

void	update_initial_solution ()

void	save_initial_solution ()

double	getAV (double location)

bool	use_initial_data (double z[], const double &x)

virtual void	make_thread_safe (ParameterHandler &param, unsigned int thread_index)

Protected Member Functions inherited from FuelCellShop::MicroScale::AgglomerateBase
void	_initialize_film_porosity ()

	AgglomerateBase ()

virtual double	compute_thickness_agg ()
	Member function to compute the thickness of the agglomerate thin film based on the radius and structure. More...

virtual double	compute_epsilon_agg ()
	Compute the volume fraction of nafion inside the agglomerate given the catalyst layer ionomer volume fraction , $\epsilon_N$ ; size of the agglomerate, $r_{agg}$ ; and, porosity inside the agglomerate, $\epsilon_{agg}$ , the necessary ionomer thin film thickness is computed such that the correct volume fractions are obtained. More...

virtual double	compute_epsilon_N (const double delta_agg, const double thickness_agg) const
	Function used to compute the amount of electrolyte in the catalyst layer. More...

virtual double	compute_depsilonN_dthickness (const double thickness_agg) const
	Function to compute $\frac{\partial \epsilon_N^{cat}}{\partial thickness_{agg}}$ This function should only be used to calculate the thin film thickness using Newton's method. More...

virtual double	compute_depsilonN_depsilon_agg () const
	Inline function to compute $\frac{\partial \epsilon_N^{cat}}{\partial \epsilon_{agg}}$ This function should only be used to calculate the thin film thickness using Newton's method. More...

virtual double	compute_n () const
	Member function to compute the number of agglomerates. More...

virtual double	compute_dn_depsilon_agg () const
	Compute the derivative of n with respect to the porosity of the agglomerate. More...

Protected Member Functions inherited from FuelCellShop::MicroScale::MicroScaleBase
void	set_layer (FuelCellShop::Layer::MultiScaleCL< deal_II_dimension > *_layer)

	MicroScaleBase ()

Private Member Functions
void	fsub (double &, double[], double[], double[])
	Define the DAE function. More...

void	dfsub (double &, double[], double[], double[])
	The Jacobian of fsub. More...

void	gsub (int &, double[], double &)
	Define the boundary conditions. More...

void	dgsub (int &, double[], double[])
	The derivatives of the boundary conditions. More...

void	guess (double &, double[], double[], double[])
	The initial guess. More...

Static Private Member Functions
static void	fsub_wrapper (double &, double[], double[], double[])

static void	dfsub_wrapper (double &, double[], double[], double[])

static void	gsub_wrapper (int &, double[], double &)

static void	dgsub_wrapper (int &, double[], double[])

static void	guess_wrapper (double &, double[], double[], double[])

Private Attributes
double	cond_factor
	Used to modify the proton conductivity in agglomerate. More...

double	k_O2
	Rate constant for non-equilibrium boundary condition. More...

bool	non_equil_bc
	Bool to determine if the non-equilibrium boundary condition is used. More...

double	sigma_p
	Proton conductivity. More...

double	lambda

bool	uFD

double	endTol

double	prev_effectiveness

Instance Delivery
static IonomerAgglomerate const *	PROTOTYPE

virtual boost::shared_ptr < FuelCellShop::MicroScale::MicroScaleBase >	create_replica ()
	This member function is used to create an object of type MicroScaleBase. More...

Additional Inherited Members
Static Public Member Functions inherited from FuelCellShop::MicroScale::MicroScaleBase
static void	declare_MicroScale_parameters (ParameterHandler &param)
	Function used to declare all the data necessary in the parameter files for all MicroScale children. More...

static boost::shared_ptr < FuelCellShop::MicroScale::MicroScaleBase >	create_MicroStructure (ParameterHandler &param, FuelCellShop::Layer::MultiScaleCL< deal_II_dimension > *layer)
	Function used to select the appropriate MicroScale type as specified in the ParameterHandler under line. More...

Protected Types inherited from FuelCellShop::MicroScale::AgglomerateBase
typedef FuelCellShop::Layer::MultiScaleCL < deal_II_dimension > ::Properties	CLPropNames

typedef std::map< CLPropNames, double >	CL_Properties

Protected Types inherited from FuelCellShop::MicroScale::MicroScaleBase
typedef std::map< std::string, MicroScaleBase * >	_mapFactory
	This object is used to store all objects of type MicroScaleBase. More...

Static Protected Member Functions inherited from FuelCellShop::MicroScale::MicroScaleBase
static _mapFactory *	get_mapFactory ()
	This member function is used to create an object of type MicroScaleBase. More...

Protected Attributes inherited from FuelCellShop::MicroScale::NumericalAgglomerateBase
std::vector< std::vector < double > >	final_results

std::vector< std::vector < double > >	initial_solution

std::vector< std::string >	column_names

double	R_tol

Protected Attributes inherited from FuelCellShop::MicroScale::AgglomerateBase
boost::shared_ptr < FuelCellShop::Material::CatalystBase >	catalyst
	Boost shared pointer to catalyst object. More...

boost::shared_ptr < FuelCellShop::Material::PolymerElectrolyteBase >	electrolyte
	Boost shared pointer to electrolyte object. More...

boost::shared_ptr < FuelCellShop::Kinetics::BaseKinetics >	kinetics
	Boost shared pointer to kinetics object. More...

std::map< VariableNames, SolutionVariable >	solutions
	Member data for storing solutions. More...

std::vector< VariableNames >	sol_names

VariableNames	reactant

VariableNames	tempReactantName

int	sol_index

double	permittivity_0
	Constants. More...

double	pi

double	F

double	R

double	P

double	AV

double	r_agg

double	delta_agg

double	epsilon_agg

double	c_R

bool	has_derivatives_

double	c_H

double	phi_M

double	phi_S

double	interface

double	D_R_N

double	H_R_N
	Henry's Constant for primary reactant in nafion, [Pa cm^3/mol]. More...

std::string	fixed_agg_variable

double	n_agg

Protected Attributes inherited from FuelCellShop::MicroScale::MicroScaleBase
FuelCellShop::Layer::MultiScaleCL < deal_II_dimension > *	layer

Protected Attributes inherited from FuelCell::ApplicationCore::DAEWrapper
int	n_mesh
	Number of mesh points. More...

double *	mesh
	Array of mesh points. More...

int	n_colloc
	Number of collocation points. More...

int	n_output
	Output integer variable. More...

int	n_comp
	number of PDEs More...

int	n_y
	number of Algebraic constraints More...

int *	mm
	array of integers storing the order of each PDE More...

int	m_star
	Integer representing the total number of variables given by $\sum mm[i]$ . More...

double	boundary_0
	Left boundary point. More...

double	boundary_1
	Right boundary point. More...

double *	zeta
	Array of boundary points. More...

FuelCell::ApplicationCore::DAESolver *	prob
	DAE problem solver object. More...

double *	fixpnt
	Array of fixed points on the mesh. More...

int *	ltol

double *	tol

double	cm_to_m
	Convert from centimetres to metres. More...

double	cm2_to_m2
	Convert from centimetres squared to metres squared. More...

double	cm3_to_m3
	Convert from centimetres cubed to metres cubed. More...

Detailed Description

Class that solves an ionomer-filled agglomerate problem in 1D.

This class uses the DAE solver interface to solve the problem using COLDAE (included in the contrib folder) to solve a boundary value problem.

Input parameters

LIST OF INPUT PARAMETERS FOR THE CLASS.

* ...
* subsection MicroScale
*   subsection IonomerAgglomerateNumerical
*      set Proton Conductivity factor = 1.0 #Factor modifying ionomer proton conductivity within the agglomerate and film
*      set Non Equilibrium BC Rate constant = 0.13 #Non equilibrium Reaction rate coefficient
*      set Use non equilibrium BC = false #Use non-equilibrium BC as described by Suzukhi et al.
*   end
* end
*

Constructor & Destructor Documentation

FuelCellShop::MicroScale::IonomerAgglomerate::IonomerAgglomerate ( int verbose = 1 )

protected

Constructors.

FuelCellShop::MicroScale::IonomerAgglomerate::IonomerAgglomerate ( std::string name )

protected

Member Function Documentation

virtual double FuelCellShop::MicroScale::IonomerAgglomerate::aux_volume_fraction ( )

inlinevirtual

MicroScale object may have extra contribution to volume of layer, e.g.

water.

The ionomer filled agglomerate model does not modify macro scale porosity

Implements FuelCellShop::MicroScale::MicroScaleBase.

virtual SolutionMap FuelCellShop::MicroScale::IonomerAgglomerate::compute_current ( )

virtual

Main function of the class used to compute the current over the whole agglomerate at the local operating conditions.

Implements FuelCellShop::MicroScale::MicroScaleBase.

int FuelCellShop::MicroScale::IonomerAgglomerate::cont_tolerance	(	double	start_tol,
		double	end_tol
	)

protected

Function which implements a continuation based on the tolerance.

virtual boost::shared_ptr<FuelCellShop::MicroScale::MicroScaleBase> FuelCellShop::MicroScale::IonomerAgglomerate::create_replica ( )

inlineprotectedvirtual

This member function is used to create an object of type MicroScaleBase.

Implements FuelCellShop::MicroScale::MicroScaleBase.

virtual void FuelCellShop::MicroScale::IonomerAgglomerate::declare_parameters ( ParameterHandler & param ) const

inlineprotectedvirtual

Reimplemented from FuelCellShop::MicroScale::NumericalAgglomerateBase.

References concrete_name, and FuelCellShop::MicroScale::NumericalAgglomerateBase::declare_parameters().

Here is the call graph for this function:

void FuelCellShop::MicroScale::IonomerAgglomerate::dfsub	(	double &	,
		double	[],
		double	[],
		double	[]
	)

privatevirtual

The Jacobian of fsub.

Until we decide on how to get AD support in FCST, we must enter the Jacobian in manually. Note that a one-dimensional array must be passed back to COLDAE. However, it is easier to define a two-dimensional array as the matrix (see COLDAE.f). After, use c_to_for_matrix to convert it to the correct one-dimensional array.

Implements FuelCell::ApplicationCore::DAEWrapper.

static void FuelCellShop::MicroScale::IonomerAgglomerate::dfsub_wrapper	(	double &	,
		double	[],
		double	[],
		double	[]
	)

staticprivate

void FuelCellShop::MicroScale::IonomerAgglomerate::dgsub	(	int &	,
		double	[],
		double	[]
	)

privatevirtual

The derivatives of the boundary conditions.

See COLDAE.f

Implements FuelCell::ApplicationCore::DAEWrapper.

static void FuelCellShop::MicroScale::IonomerAgglomerate::dgsub_wrapper	(	int &	,
		double	[],
		double	[]
	)

staticprivate

void FuelCellShop::MicroScale::IonomerAgglomerate::fsub	(	double &	,
		double	[],
		double	[],
		double	[]
	)

privatevirtual

Define the DAE function.

In this case,it is simply a system of ODES. COLDAE allows for the system to be defined as a system of 2 mixed-order ODEs. See COLDAE.f for additional information about how to define fsub. In particular, see COLDAE.f for the meaning of z and y. Note that because a BVP is solved, y is not used.

Implements FuelCell::ApplicationCore::DAEWrapper.

static void FuelCellShop::MicroScale::IonomerAgglomerate::fsub_wrapper	(	double &	,
		double	[],
		double	[],
		double	[]
	)

staticprivate

virtual double FuelCellShop::MicroScale::IonomerAgglomerate::get_film_thickness ( )

inlineprotectedvirtual

Implements FuelCellShop::MicroScale::AgglomerateBase.

References FuelCellShop::MicroScale::AgglomerateBase::delta_agg.

virtual std::string FuelCellShop::MicroScale::IonomerAgglomerate::get_name ( )

inlinevirtual

Return name of class instance, i.e.

concrete name.

Implements FuelCellShop::MicroScale::MicroScaleBase.

References concrete_name.

virtual double FuelCellShop::MicroScale::IonomerAgglomerate::get_radius ( )

inlineprotectedvirtual

Implements FuelCellShop::MicroScale::AgglomerateBase.

References FuelCellShop::MicroScale::AgglomerateBase::r_agg.

void FuelCellShop::MicroScale::IonomerAgglomerate::gsub	(	int &	,
		double	[],
		double &
	)

privatevirtual

Define the boundary conditions.

There are 4 boundary conditions. Note that i refers to the ith boundary condition. See COLDAE.f

Implements FuelCell::ApplicationCore::DAEWrapper.

static void FuelCellShop::MicroScale::IonomerAgglomerate::gsub_wrapper	(	int &	,
		double	[],
		double &
	)

staticprivate

void FuelCellShop::MicroScale::IonomerAgglomerate::guess	(	double &	,
		double	[],
		double	[],
		double	[]
	)

privatevirtual

The initial guess.

This is optional, but a good idea for this problem. If we do not provide this, CODAE will use a constant of 0.0 for an initial guess.

Implements FuelCell::ApplicationCore::DAEWrapper.

static void FuelCellShop::MicroScale::IonomerAgglomerate::guess_wrapper	(	double &	,
		double	[],
		double	[],
		double	[]
	)

staticprivate

virtual void FuelCellShop::MicroScale::IonomerAgglomerate::initialize ( ParameterHandler & param )

inlineprotectedvirtual

Reimplemented from FuelCellShop::MicroScale::NumericalAgglomerateBase.

References concrete_name, cond_factor, FuelCellShop::MicroScale::NumericalAgglomerateBase::initialize(), k_O2, and non_equil_bc.

Here is the call graph for this function:

virtual void FuelCellShop::MicroScale::IonomerAgglomerate::set_structure ( )

protectedvirtual

Set the composition and structure of the agglomerate.

Implements FuelCellShop::MicroScale::MicroScaleBase.

void FuelCellShop::MicroScale::IonomerAgglomerate::setup_DAE_solver ( )

protectedvirtual

Setup the variables in the problem required by the DAE Solver.

Implements FuelCell::ApplicationCore::DAEWrapper.

Member Data Documentation

const std::string FuelCellShop::MicroScale::IonomerAgglomerate::concrete_name

static

Referenced by declare_parameters(), get_name(), and initialize().

double FuelCellShop::MicroScale::IonomerAgglomerate::cond_factor

private

Used to modify the proton conductivity in agglomerate.

Referenced by initialize().

double FuelCellShop::MicroScale::IonomerAgglomerate::endTol

private

double FuelCellShop::MicroScale::IonomerAgglomerate::k_O2

private

Rate constant for non-equilibrium boundary condition.

Referenced by initialize().

double FuelCellShop::MicroScale::IonomerAgglomerate::lambda

private

bool FuelCellShop::MicroScale::IonomerAgglomerate::non_equil_bc

private

Bool to determine if the non-equilibrium boundary condition is used.

Referenced by initialize().

double FuelCellShop::MicroScale::IonomerAgglomerate::prev_effectiveness

private

IonomerAgglomerate const* FuelCellShop::MicroScale::IonomerAgglomerate::PROTOTYPE

staticprotected

double FuelCellShop::MicroScale::IonomerAgglomerate::sigma_p

private

Proton conductivity.

bool FuelCellShop::MicroScale::IonomerAgglomerate::uFD

private

The documentation for this class was generated from the following file:

agglomerate_ionomer_1D.h

Public Member Functions

Static Public Attributes

Protected Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Instance Delivery

Additional Inherited Members

Detailed Description

Input parameters

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
