residual_shop_bdry.h File Reference

Residual integration routines on cells for standard bilinear forms. More...

#include <appframe/app_shop.h>

Include dependency graph for residual_shop_bdry.h:

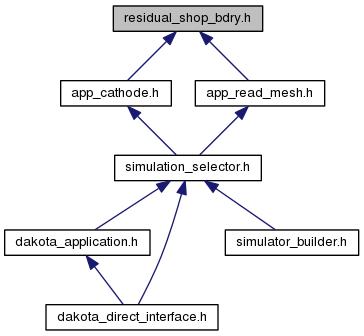

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	AppShop
	Integration routines for matrices and residual for standard applications.
namespace	AppShop::Residual
	Local integration routines for residuals.
namespace	AppShop::Residual::Boundary
	Integration of boundary face residuals.

Functions
template<int dim>
void	AppShop::Residual::Boundary::advection (Vector< double > &result, const std::vector< double > &input, const std::vector< Vector< double > > &data, unsigned int data_index, const FEFaceValuesBase< dim > &fe, const std::vector< Point< dim > > &velocity, double factor=1.)
	Upwind flux at boundary faces.
template<int dim>
void	AppShop::Residual::Boundary::advection (Vector< double > &result, const std::vector< double > &input, const std::vector< double > &data, const FEFaceValuesBase< dim > &fe, const VectorSlice< const std::vector< std::vector< double > > > &velocity, double factor=1.)
	Upwind flux at boundary faces.
template<int dim>
void	AppShop::Residual::Boundary::advection (Vector< double > &result, const VectorSlice< const std::vector< std::vector< double > > > &input, const VectorSlice< const std::vector< std::vector< double > > > &data, const FEFaceValuesBase< dim > &fe, const VectorSlice< const std::vector< std::vector< double > > > &velocity, double factor=1.)
	Vector valued upwind flux at boundary faces.
template<int dim>
void	AppShop::Residual::Boundary::u_times_n (Vector< double > &result, const std::vector< double > &input, const FEFaceValuesBase< dim > &fe, const FEFaceValuesBase< dim > &fetest, double factor=1.)
	Product of solution and normal vector.
template<int dim>
void	AppShop::Residual::Boundary::u_times_n (Vector< double > &result, const VectorSlice< const std::vector< std::vector< double > > > &input, const FEFaceValuesBase< dim > &fe, const FEFaceValuesBase< dim > &fetest, double factor=1.)
	Product of solution and normal vector, vector valued.
template<int dim>
void	AppShop::Residual::Boundary::u_times_n_scaled (Vector< double > &result, const std::vector< double > &input, const FEFaceValuesBase< dim > &fe, const FEFaceValuesBase< dim > &fetest, const std::vector< double > &a, bool divide=false)
	Product of solution and normal vector.
template<int dim>
void	AppShop::Residual::Boundary::u_dot_n (Vector< double > &result, const VectorSlice< const std::vector< std::vector< double > > > &input, const FEFaceValuesBase< dim > &fe, const FEFaceValuesBase< dim > &fetest, double factor=1.)
	Dot product of solution and normal vector.
template<int dim>
void	AppShop::Residual::Boundary::u_dot_n_scaled (Vector< double > &result, const VectorSlice< const std::vector< std::vector< double > > > &input, const FEFaceValuesBase< dim > &fe, const FEFaceValuesBase< dim > &fetest, const std::vector< double > &a, bool divide=false)
	Dot product of solution and normal vector.
template<int dim>
void	AppShop::Residual::Boundary::eps (Vector< double > &result, const VectorSlice< const std::vector< std::vector< double > > > &input, const FEFaceValuesBase< dim > &fe, const FEFaceValuesBase< dim > &fetest)
	Elasticity.
template<int dim>
void	AppShop::Residual::Boundary::eps_div (Vector< double > &result, const VectorSlice< const std::vector< std::vector< double > > > &input, const FEFaceValuesBase< dim > &fe, const FEFaceValuesBase< dim > &fetest)
	Elasticity.
template<int dim>
void	AppShop::Residual::Boundary::jump (Vector< double > &result, const std::vector< double > &input, const FEFaceValuesBase< dim > &fe, const double factor=1.)
	Boundary mass matrix.
template<int dim>
void	AppShop::Residual::Boundary::jump_scaled (Vector< double > &result, const std::vector< double > &input, const FEFaceValuesBase< dim > &fe, const std::vector< double > &a, const double factor=1., bool divide=false)
	Boundary mass.
template<int dim>
void	AppShop::Residual::Boundary::jump_scaled (Vector< double > &result, const std::vector< double > &input, const std::vector< Vector< double > > &data, const unsigned int data_index, const FEFaceValuesBase< dim > &fe, const std::vector< double > &factor, const double factor2=1., bool divide=false)
	Boundary jump, vector valued.
template<int dim>
void	AppShop::Residual::Boundary::nitsche (Vector< double > &result, const std::vector< double > &u, const std::vector< Tensor< 1, dim > > &Du, const std::vector< double > &data, const FEFaceValuesBase< dim > &fe, double penalty, double factor=1.)
	Weak boundary condition for the Laplacian by Nitsche.
template<int dim>
void	AppShop::Residual::Boundary::nitsche (Vector< double > &result, const VectorSlice< const std::vector< std::vector< double > > > &u, const VectorSlice< const std::vector< std::vector< Tensor< 1, dim > > > > &Du, const VectorSlice< const std::vector< std::vector< double > > > &data, const FEFaceValuesBase< dim > &fe, double penalty, double factor=1.)
	Weak boundary condition for the Laplacian by Nitsche for vector valued elements.
template<int dim>
void	AppShop::Residual::Boundary::nitsche (Vector< double > &result, const std::vector< double > &u, const std::vector< Tensor< 1, dim > > &Du, const std::vector< Vector< double > > &data, const unsigned int data_index, const FEFaceValuesBase< dim > &fe, double penalty, double factor=1.)
	Weak boundary condition for the Laplacian by Nitsche.
template<int dim>
void	AppShop::Residual::Boundary::nitsche_scaled (Vector< double > &result, const std::vector< double > &u, const std::vector< Tensor< 1, dim > > &Du, const std::vector< Vector< double > > &data, const unsigned int data_index, const FEFaceValuesBase< dim > &fe, const std::vector< double > &factor, double penalty)
	Weak boundary condition for the Laplacian by Nitsche.
template<int dim>
void	AppShop::Residual::Boundary::nitsche_scaled (Vector< double > &result, const VectorSlice< const std::vector< std::vector< double > > > &u, const VectorSlice< const std::vector< std::vector< Tensor< 1, dim > > > > &Du, const std::vector< Vector< double > > &data, const unsigned int data_index, const FEFaceValuesBase< dim > &fe, const std::vector< double > &factor, double penalty)
	Weak boundary condition for the Laplacian by Nitsche.

Detailed Description

Residual integration routines on cells for standard bilinear forms.
